TTC Flip King of Magnetic KOM Switch
TTC Flip King of Magnetic KOM Switch
TTC Flip King of Magnetic KOM Switch

TTC 反斗万磁王磁轴轴体

$12.00
尺寸
尺寸: 10件
库存，准备出货
Switch Spec

轴体类型：线性磁轴
初始压力：35±5gf
初始磁通量：90±10高斯（PCB 1.6mm）
最终磁通量：480±30高斯（PCB 1.6mm）
总行程：3.5±0.2mm
弹簧长度：21mm
出厂润滑：是

取货地点： Toronto KeyboardMan Showroom

通常在 24 小时内就绪
Description
Description

TTC 反斗万磁王

丝滑线性手感 · 高稳定 HE 磁轴 · 偏闷声音路线

温馨提示： 本产品不兼容机械键盘，仅适用于 HE 磁轴键盘。
包装数量： 1 份订单 = 10 颗轴

TTC 反斗万磁王是一颗面向新一代 Hall Effect 磁轴键盘打造的高性能线性磁轴，主打顺滑、稳定，并带有偏闷的声音表现。整颗轴围绕磁感应精度、按压一致性和长期顺滑度做了比较完整的结构优化，很适合偏性能向和客制化取向的 HE 键盘方案。

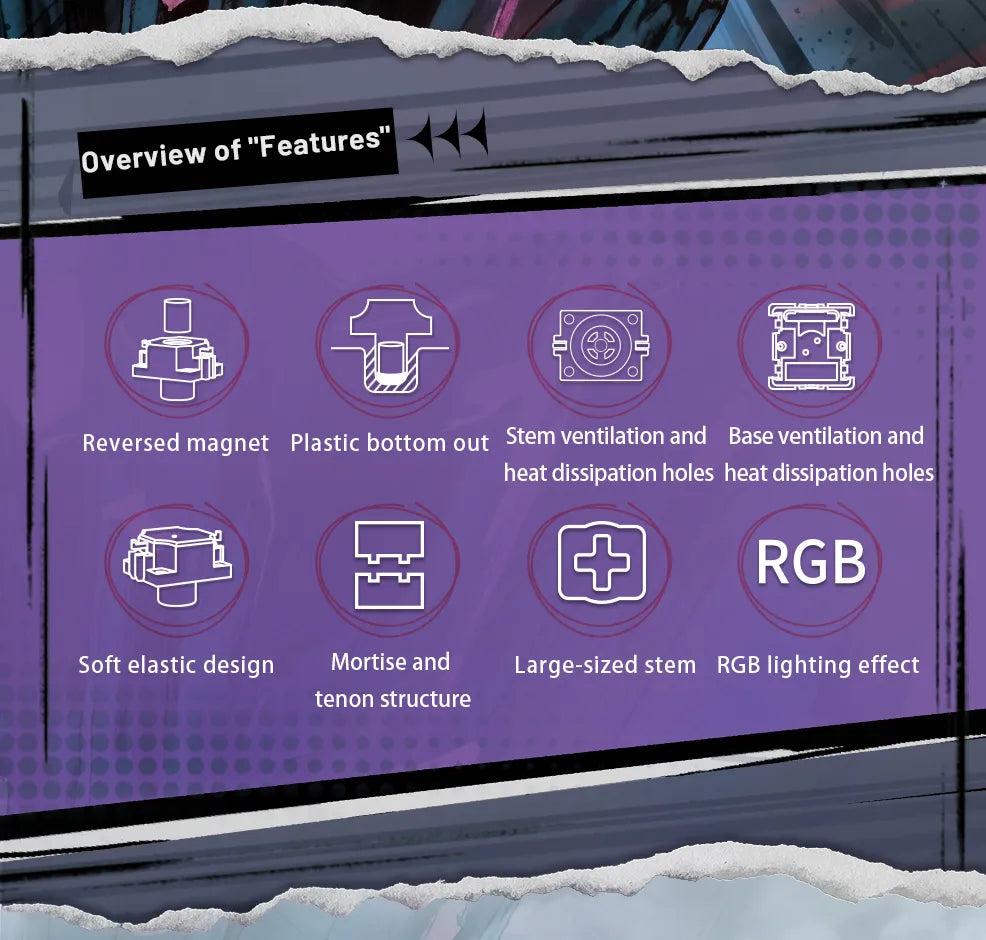

这颗轴支持自定义触发行程，可以根据不同使用习惯去调节触发点。结构方面，它采用大磁体 + 优化磁通方案，提升磁感应精度；同时搭配 21mm 长弹簧，让回弹力度更稳定。再加上软弹轴心和榫卯稳定结构，整颗轴在按压过程中的稳定性和一致性都会更好。

为了进一步兼顾日常使用和长期耐用性，反斗万磁王还加入了双通风散热设计、防尘轴心结构和RGB 友好底壳。这些设计不仅有助于维持顺滑手感，也能减少晃动，提升灯效表现。官方标称寿命可达 1 亿次按压。

技术参数

  • 初始压力： 35 ± 3gf
  • 初始磁通： 90 ± 10Gs（PCB 1.6mm）
  • 终点磁通： 480 ± 30Gs（PCB 1.6mm）
  • 触发行程： 支持自定义
  • 总行程： 3.5 ± 0.2mm
  • 轴体类型： 线性磁轴
  • 弹簧长度： 21mm
  • 寿命： 1 亿次
  • 底壳材质： 塑料
  • 结构： 榫卯稳定结构
  • 设计： 双通风散热 / 软弹轴心 / 防尘轴心
  • RGB 支持： 支持，增强型 RGB 底壳
