WS Flux Diamond He Magnetic Switch
WS Flux Diamond He Magnetic Switch
WS Flux Diamond He Switch - Toronto KeyboardMan
WS Flux Diamond He Switch - Toronto KeyboardMan

无缺库利南八宝钻石轴

销售价格$19.99正常价格 $28.00
选项
选项: Cullinan (10Pcs)
库存，准备出货
Switch Spec

轴体类型：霍尔效应线性轴
弹簧：23毫米
初始压力：35gf
触底压力：45gf
出厂润滑：是

取货地点： Toronto KeyboardMan Showroom

通常在 24 小时内就绪
Description
Description

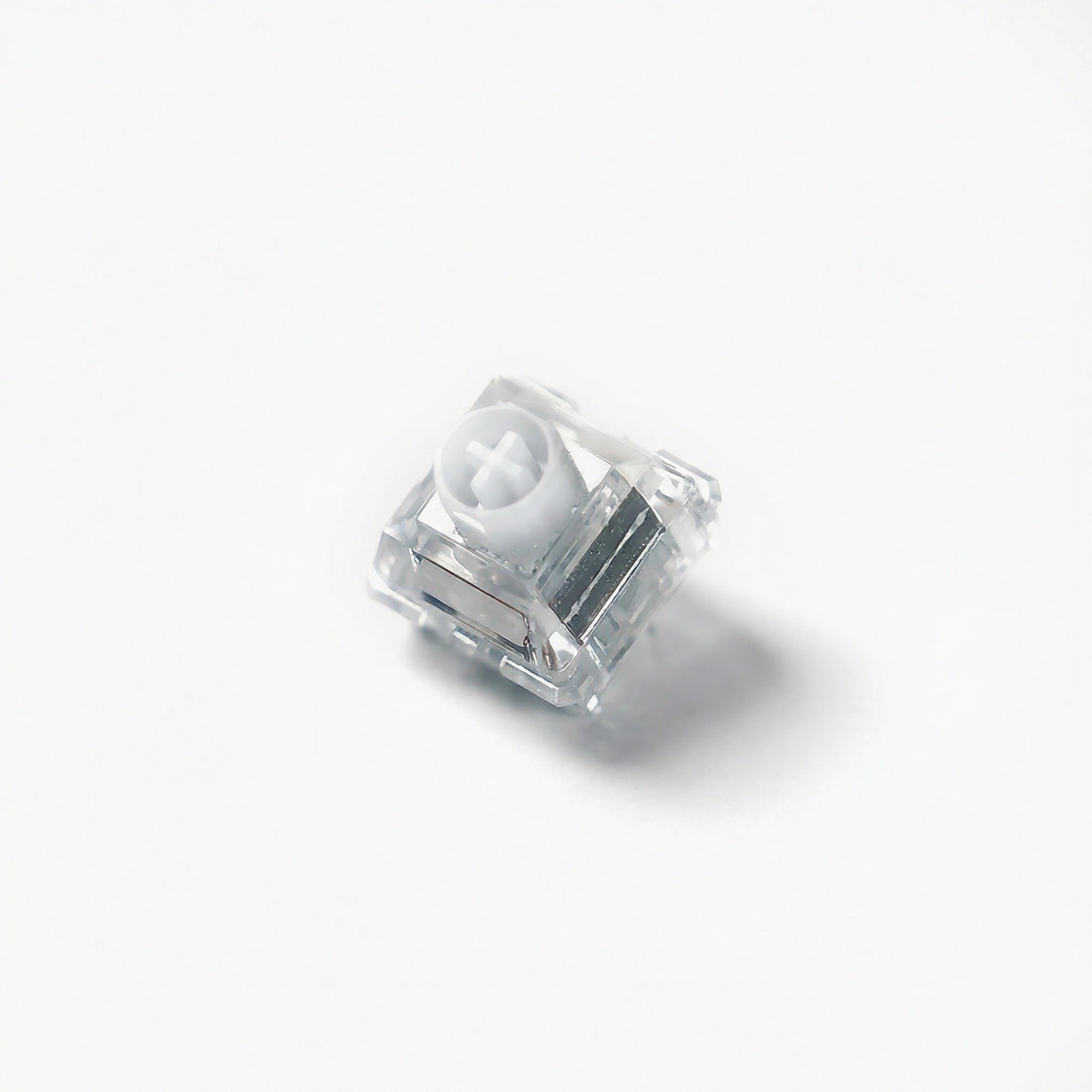

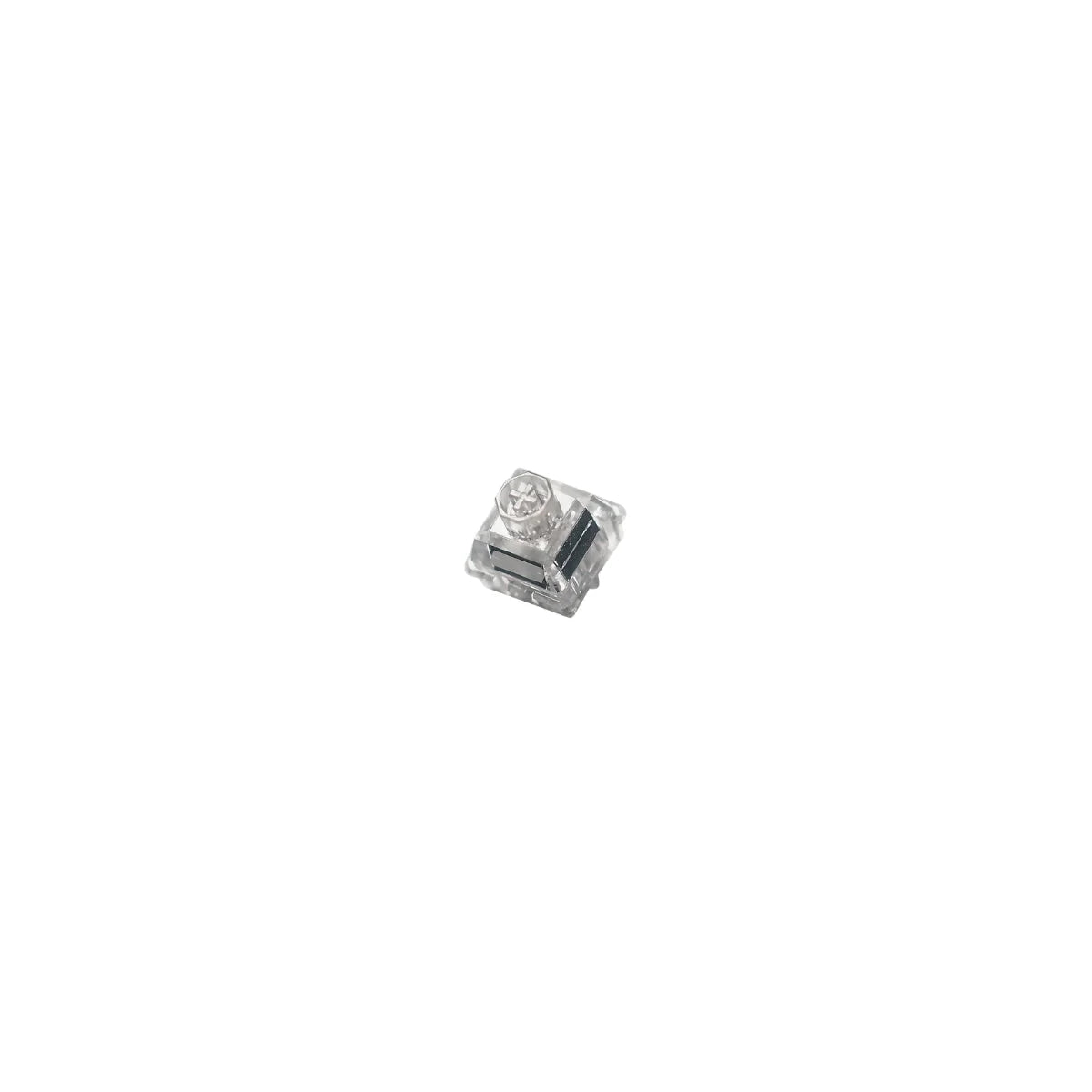

WS Flux Diamond HE Switch

无缺库利南八宝钻石轴 磁轴轴体

WS Flux Diamond HE 磁轴有海洋之心和库里南两种不同型号。两者都具有相同的核心霍尔效应结构和规格，但使用不同的材料以产生截然不同的声音特性。

型号比较

特性 海洋之心 库里南
声音特性 深沉的咔哒声 低沉的/奶油般的
上盖 浅蓝色透明PC 全透明PC
轴心 浅蓝色POM 透明PA12
散光片 磨砂PC 透明PC
底座 浅蓝色透明PC 全透明PC

共同规格

  • 弹簧直径：6.65毫米
  • 弹簧长度：23毫米
  • 磁铁：3.6毫米中心磁铁
  • 初始压力：35±5gf
  • 触底压力：45±7gf
  • 总行程：3.50±0.10毫米
  • 初始磁通量：130±15GS (PCB 1.2毫米) / 115±15GS (PCB 1.6毫米)
  • 触底磁通量：750±70GS (PCB 1.2毫米) / 635±50GS (PCB 1.6毫米)
  • 类型：线性
  • 寿命：1亿次按键
  • 出厂润滑

如何选择？

如果您喜欢深沉的咔哒声，请选择海洋之心。
如果您想要更低沉和奶油般的打字声音以及更好的RGB效果，请选择库里南。

兼容性

兼容大多数支持标准磁轴的霍尔效应键盘。
