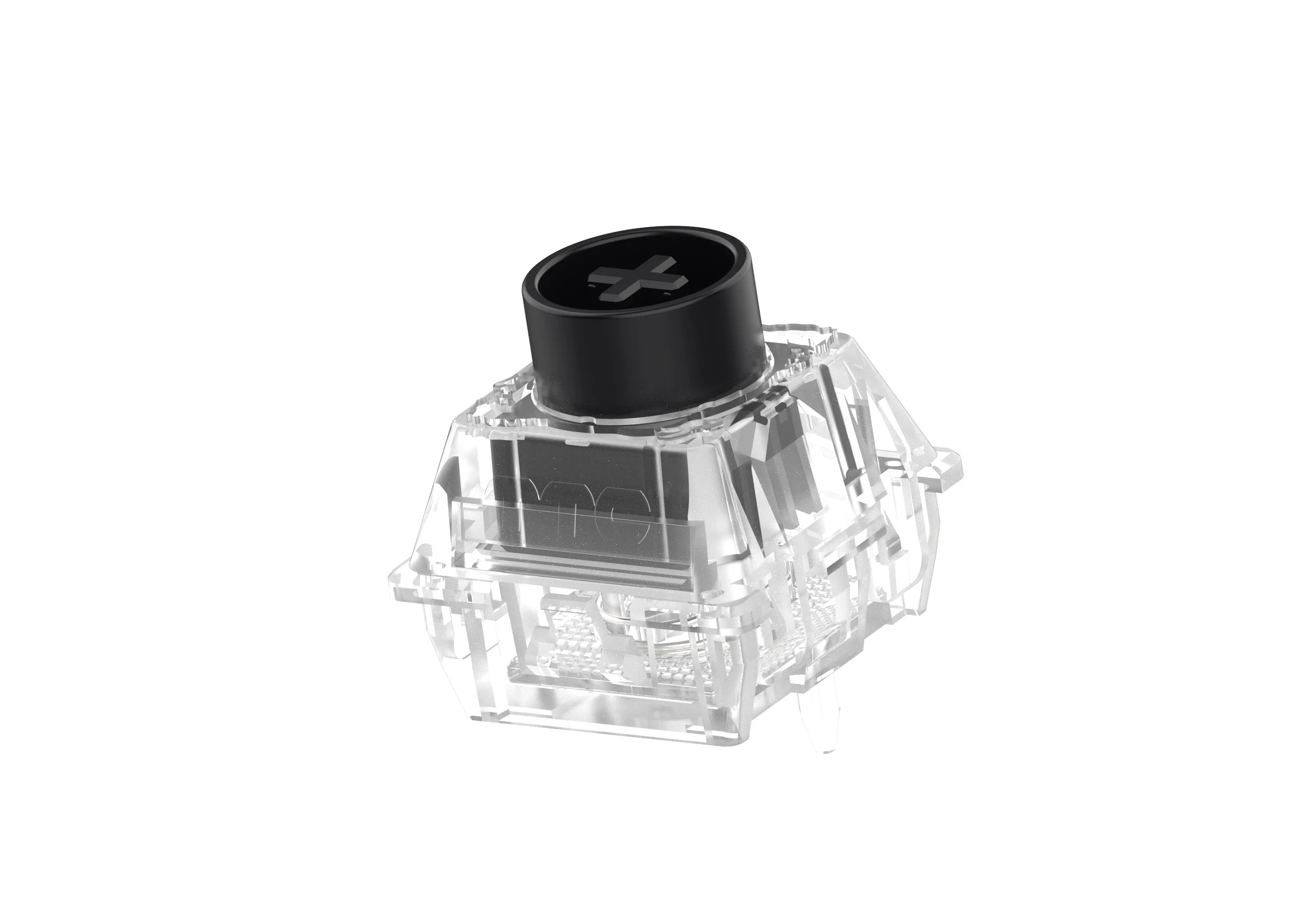

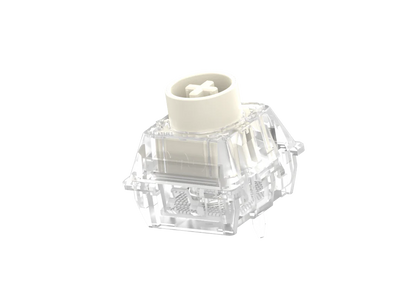

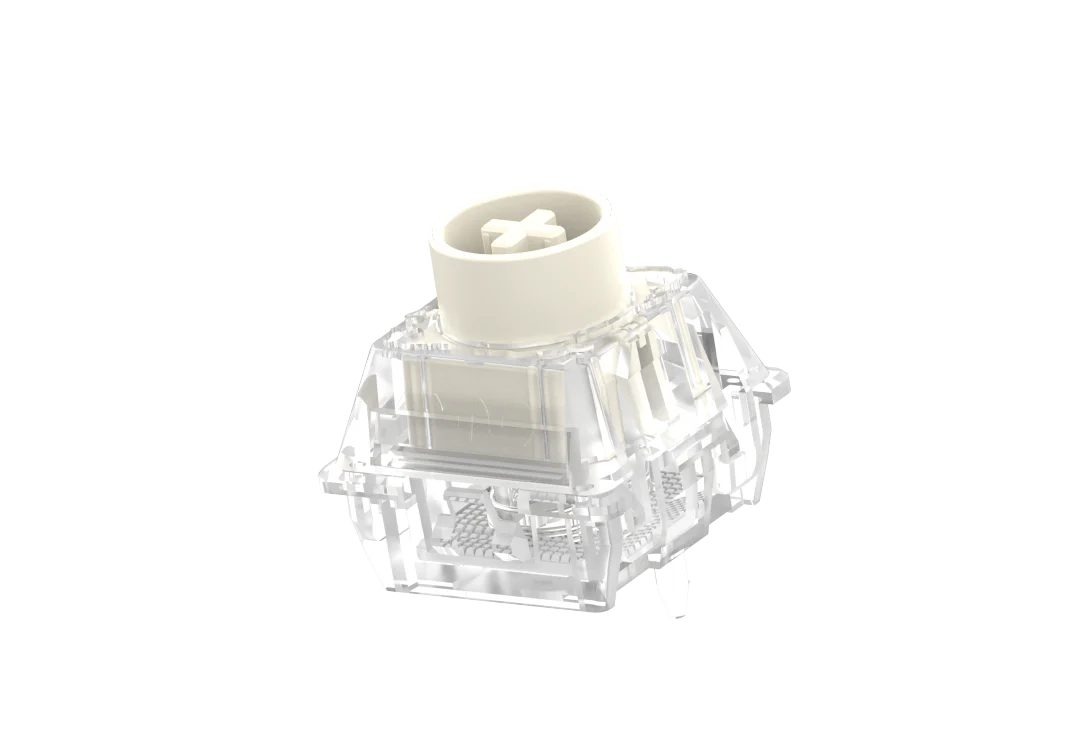

TTC Horse RGB HE Magnetic Switch
TTC Horse RGB HE Magnetic Switch
TTC Horse RGB HE Magnetic Switch - Toronto KeyboardMan
TTC Horse RGB HE Magnetic Switch
TTC Horse RGB HE Magnetic Switch

TTC 马轴 磁轴

$19.80
尺寸
尺寸: 白马（10件）
库存，准备出货
Switch Spec

类型：HE线性
初始力：35±10gf
触前行程：可定制
总行程：3.45±0.2mm
原厂润滑：是

取货地点： Toronto KeyboardMan Showroom

通常在 24 小时内就绪
Description
Description

TTC 马轴

高端线性磁轴 · 可调触发 · 标志性马蹄声

TTC 马轴是一颗面向高性能键盘方案打造的高端线性磁轴，主打精准触发、耐用表现，以及很有辨识度的马蹄声。整颗轴围绕顺滑按压、稳定磁感应和长期使用的一致性来做，适合对手感、声音和耐久度都有要求的用户。

参数方面，TTC 马轴的初始压力为 35±10gf，支持自定义触发行程，总行程为 3.45±0.2mm。寿命方面，官方标称可达 1 亿次按键。磁通数据则根据 PCB 厚度不同有所区分：在 1.6mm PCB 下为 90±10Gs 初始磁通 / 480±40Gs 终点磁通，在 1.2mm PCB 下为 100±10Gs 初始磁通 / 640±40Gs 终点磁通。

这颗轴还加入了多项结构优化。柔弹设计能够让触底更柔和，也更适合长时间使用；防尘轴心则有助于维持长期顺滑度和稳定性。再加上 Hall Effect 磁感应方案本身的可靠性优势，TTC 马轴在耐用性和一致性上也有很强的竞争力。

如果你想找一颗顺滑、耐用、带有独特声音特色的线性磁轴，不管是拿来组一把客制化磁轴键盘，还是升级自己的主力日用键盘，TTC 马轴都会是一颗很完整的选择。

规格参数

  • 类型： 线性磁轴
  • 初始压力： 35±10gf
  • 触发行程： 支持自定义
  • 总行程： 3.45±0.2mm
  • 寿命： 1 亿次按键
  • 初始磁通： 90±10Gs（PCB 1.6mm）/ 100±10Gs（PCB 1.2mm）
  • 终点磁通： 480±40Gs（PCB 1.6mm）/ 640±40Gs（PCB 1.2mm）

产品特点

  • 柔弹设计 —— 触底更柔和，长时间打字更舒服
  • 防尘轴心 —— 降低灰尘影响，维持长期稳定表现
  • 马蹄声 —— 很有辨识度的声音风格
  • 磁感应技术 —— 带来更高的可靠性和更长的使用寿命
