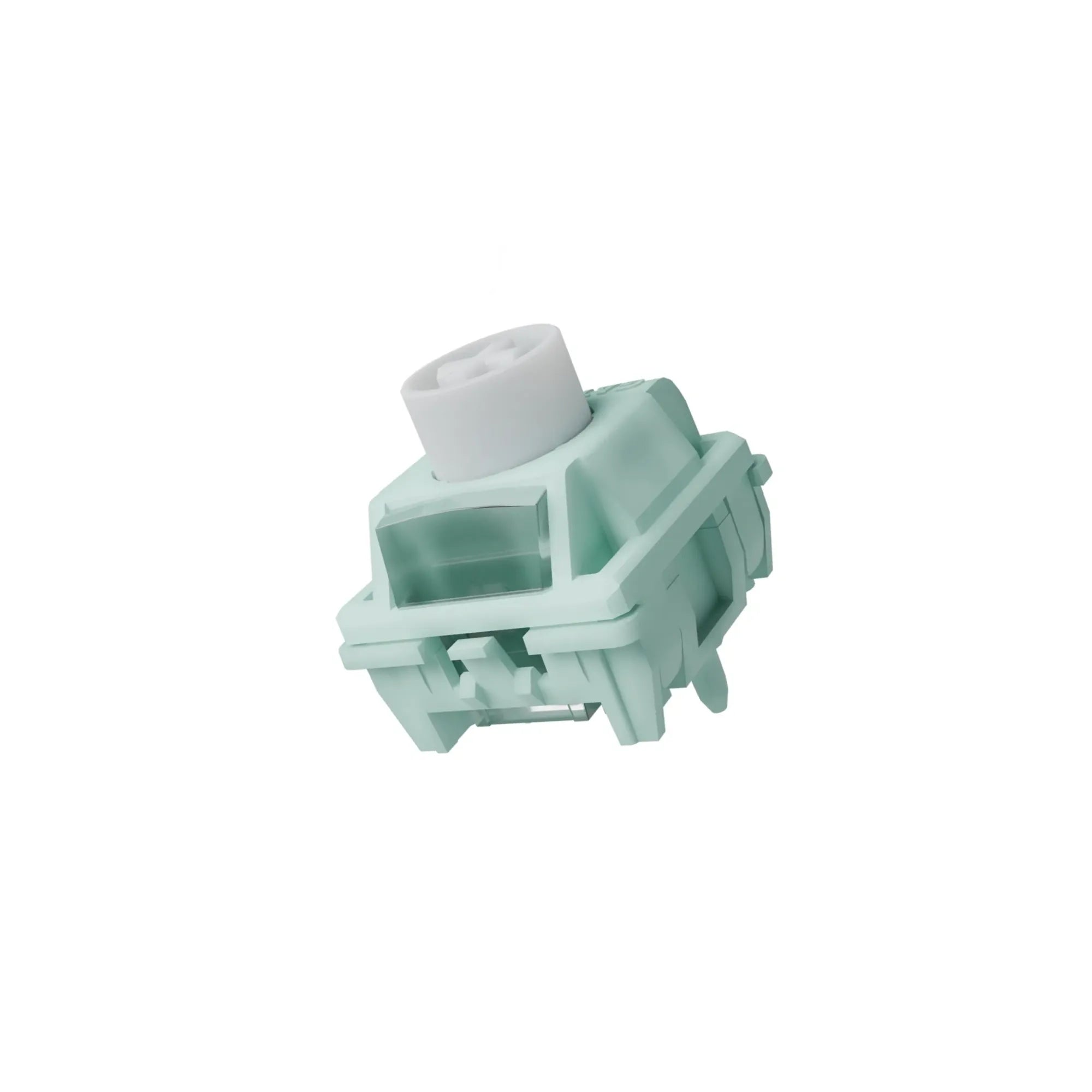

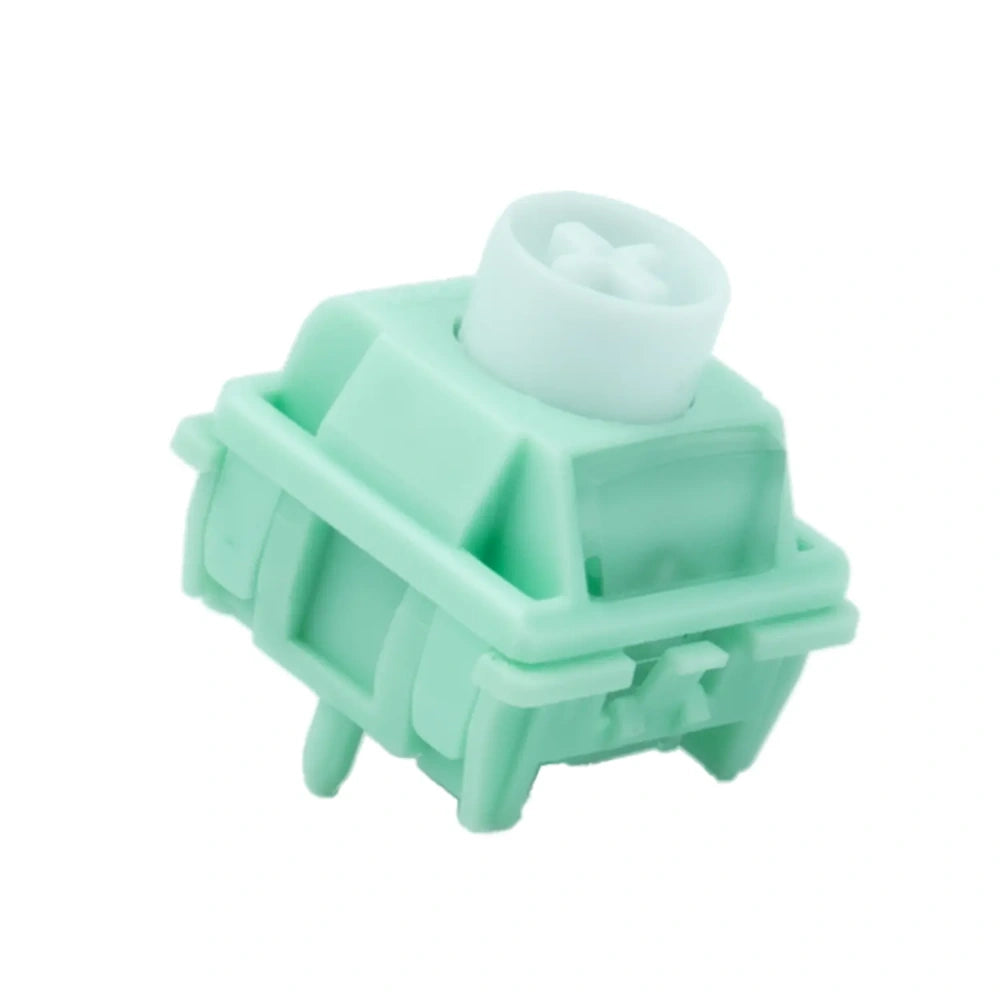

Magnetic Jade Silent — the Ultra-Quiet Hall Effect Magnetic Switch
A dual-ring sound-dampening Hall Effect switch built for magnetic keyboards: a feather-light 33 gf start, freely adjustable pre-travel, and near-silent travel for office desks and late-night gaming alike.
Engineered quiet for magnetic keyboards.
Most switches get quieter by getting mushier. The Magnetic Jade Silent takes a different route: a dual-ring sound-dampening design softens the stroke at both ends of travel, so the switch stays linear and controlled while the clack disappears. The result is a Hall Effect switch you can use in a shared office by day and still trust for rapid inputs at night.
Because actuation is read magnetically rather than through a physical contact leaf, there's no click mechanism to silence in the first place — just a smooth, pre-lubed POM stem riding a customized spring.
Three reasons to go Jade Silent.
Dual-ring dampening
Two dampening rings absorb impact on both the downstroke and the return, cutting bottom-out and upstroke noise without changing the linear feel.
Freely adjustable pre-travel
Set your actuation point anywhere along the 3.2 mm of travel in your magnetic keyboard's software — hair-trigger for games, deeper for typing.
Clean magnetic signal
A 125 GS initial to 700 GS bottom-out flux range (measured at a 1.2 mm PCB) gives the Hall Effect sensor a wide, precise window to read every keystroke.
Magnetic Switch spec sheet.
| Switch type | Linear · Silent Hall Effect Magnetic Switch |
| Initial force | 33 ± 5 gf |
| Bottom-out force | 45 ± 10 gf |
| Pre-travel | Freely adjustable (set in your magnetic keyboard's driver) |
| Total travel | 3.2 ± 0.2 mm |
| Initial magnetic flux | 125 ± 8 GS (1.2 mm PCB) |
| Bottom-out magnetic flux | 700 ± 30 GS (1.2 mm PCB) |
| Stem material | POM |
| Spring | Customized spring |
| Factory lube | Pre-lubed |
| Lifespan | 60 million keystrokes |
