Tofu60 Redux V2 — Magnetic Switch & GH60 Ready
Staying true to the iconic, minimalist design language of the TOFU family, the V2 introduces a comprehensive structural upgrade, building upon the foundation of V1. Slim bezels, an adjustable USB port, three mounting styles, and native support for Hall Effect Switch PCBs alongside standard GH60 boards.
The difference.
Foot weight, switch stability, mounting styles, USB connectivity, case bottom, feet and sound — reworked point by point over V1.
Pioneering adjustable USB port.
Inherits and refines the adjustable USB port design from V1, ensuring the USB port of various third-party PCBs aligns perfectly in the center.
Daughterboard support.
Newly added mounting holes compatible with Rakka Atlas, Venom60 HE and similar daughterboard PCBs, for advanced DIY enthusiasts.
Every layer in the stack.
Case, 1.5 mm Poron case foam, 0.05 mm PET foam, 37 g silicone filling and a 243 g brass weight bar at 2.4 mm thickness.
Standard GH60 PCBs and Magnetic Switch boards.
Supports standard GH60 layout PCBs and the Magnetic Switch (HE) PCB ecosystem — Wooting 60HE V1/V2, Rakka, Venom60 HE, Tofix, H60 and similar Hall Effect Switch boards.
Every detail, up close.
The V2 generation retains the Tofu series' signature minimalist design while completely reimagining its texture, feel and aesthetics.
Size & weight.
| Size | 294.8 × 112.26 × 32.82 × 19.7 mm |
| Typing angle | 7° |
| Effective front height | 23.6 mm |
| Silicone filling | 37 g |
| Brass weight bar | 243 g · 2.4 mm |
| Aluminum case weight | 740 g |

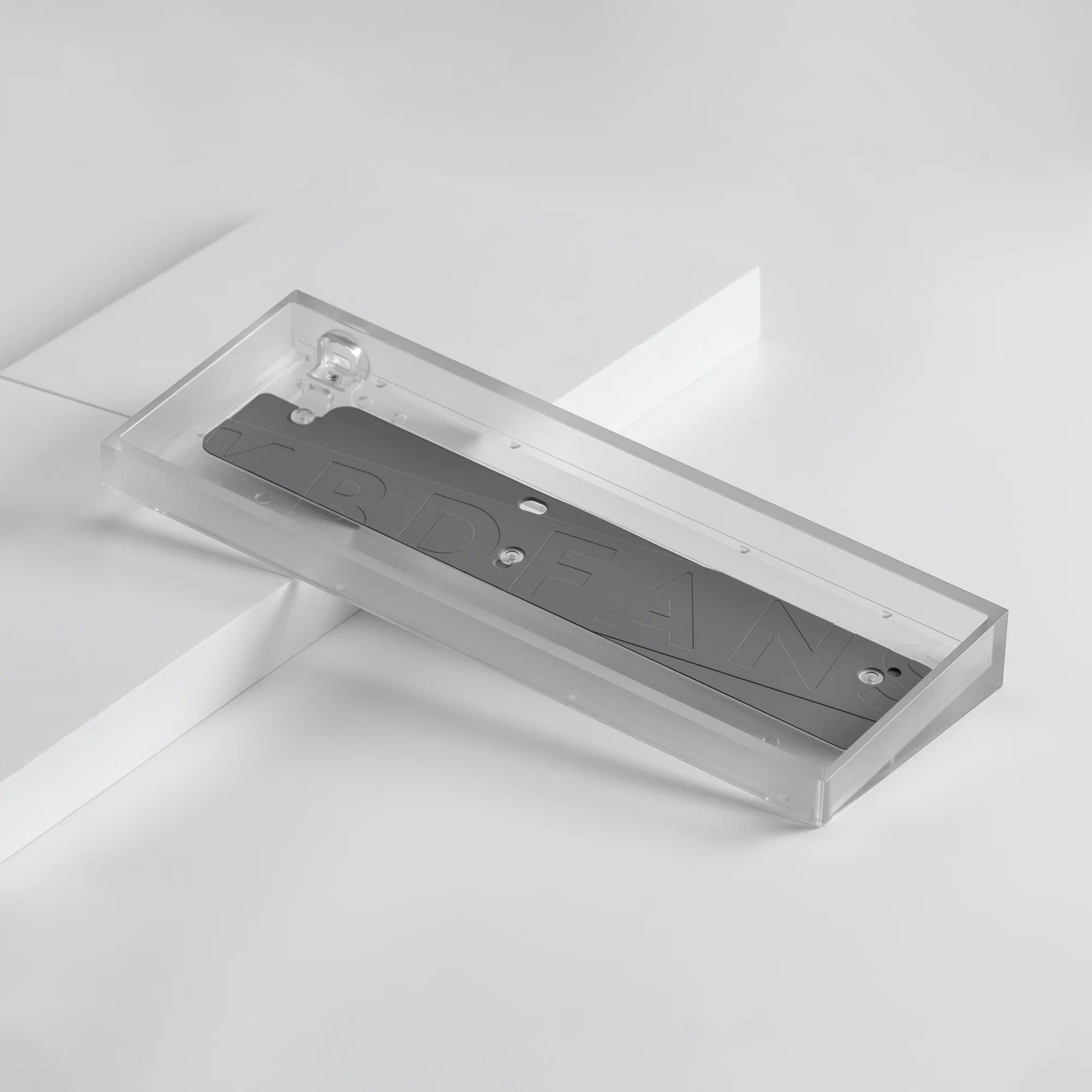

| Acrylic case weight | 311 g |
Tray, OG and O-ring.
The custom-molded CSR (Custom Silicone Ring) suspends the assembly with no screws at all — a friction-fitted build with a softer typing feel, easier disassembly and no metallic ping. Everything needed for all three mounts is included in the box.
Tray Mount
PCB and plate secured via 5 detachable brass standoffs. Mini Silicone Gaskets are essential for optimal acoustics.
Mini Gasket ×8 · Brass standoff ×5
OG Mount
Screwless, suspended build that eliminates metallic ping. Enhanced acoustics, premium typing feel, simplified disassembly.
Wooting 60HE · GH60 · Tofix
CSR ×1 · Mini Gasket ×8
O-ring Mount
Softer typing feel with a screwless, friction-fitted design. Custom-molded silicone compatible with screw-in stabilizers.
Venom60 HE · Rakka V2 · H60
CSR ×1 · Mid Gasket ×8
OG and O-ring mounts (using CSR) only support the ANSI 61 layout. They do not natively support 63 or left-shift 64 layouts unless you manually trim the silicone ring.
In the box.
- Case ×1
- Silicone Filling ×1
- CSR Silicone Ring ×1
- Mini Silicone Gasket ×8
- Mid Silicone Gasket ×8
- 1.5 mm Poron Case Foam ×1
- 0.05 mm PET Foam ×1
- Brass Standoffs ×5
- Rubber Feet ×4
- T6 Screwdriver ×1
- Barebone Hook ×1
Case only — PCB, plate, switches, keycaps and stabilizers are not included.
Spec sheet.
| Product | Tofu60 Redux V2 keyboard case (60% / GH60) |
| PCB compatibility | Standard GH60 layout PCBs · Magnetic Switch / Hall Effect Switch (HE) PCBs — Wooting 60HE V1/V2, Rakka, Venom60 HE, Tofix, H60 |
| Mounting styles | Tray · OG (O-ring + gasket) · O-ring |
| Layout note | CSR-based OG and O-ring mounts support ANSI 61 only |
| USB port | Adjustable, centres third-party PCB ports |
| Daughterboard | Mounting holes for Rakka Atlas, Venom60 HE and similar |
| Size | 294.8 × 112.26 × 32.82 × 19.7 mm |
| Typing angle | 7° |
| Effective front height | 23.6 mm |
| Silicone filling | 37 g |
| Brass weight bar | 243 g · 2.4 mm thick |
| Aluminum case weight | 740 g |
| Acrylic case weight | 311 g |

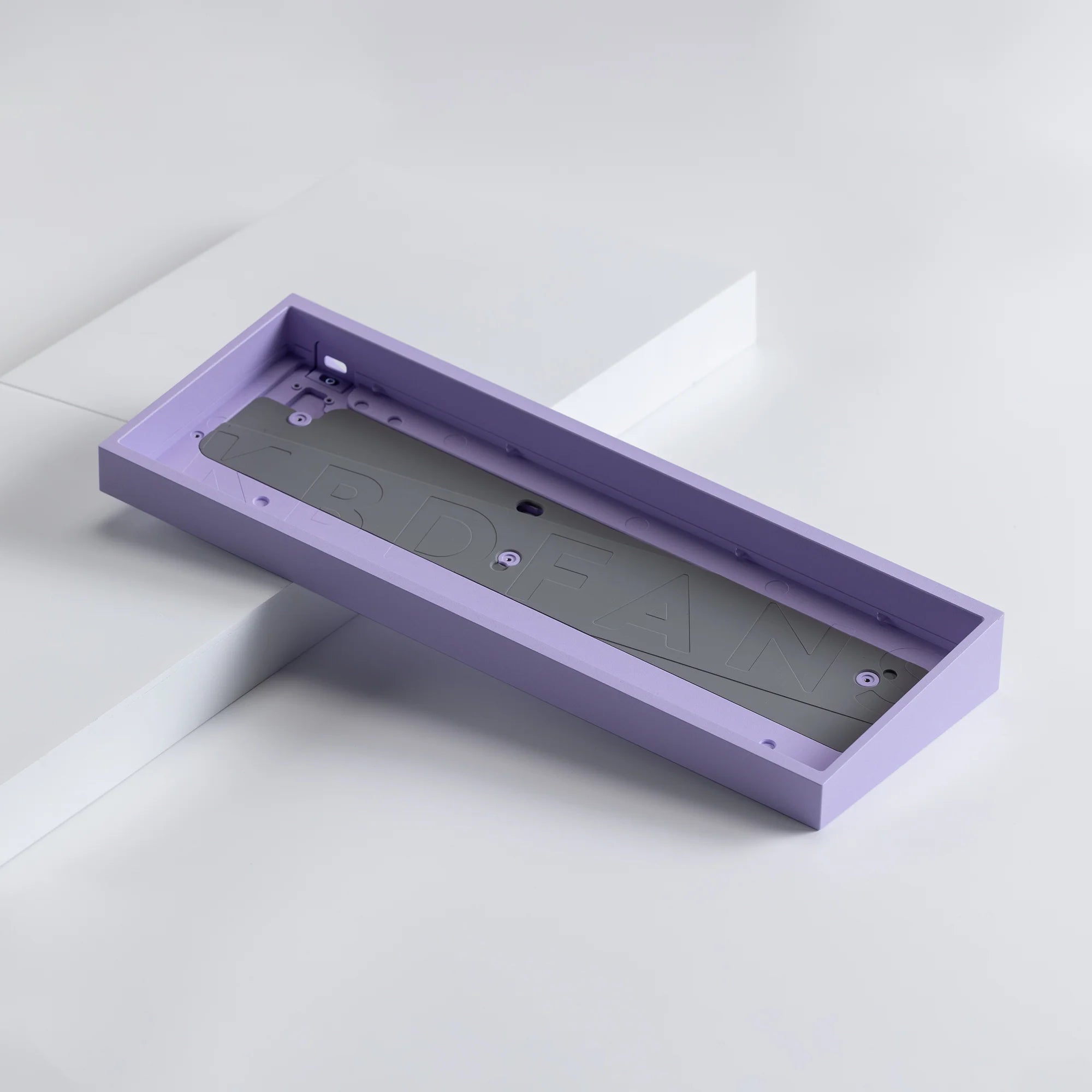

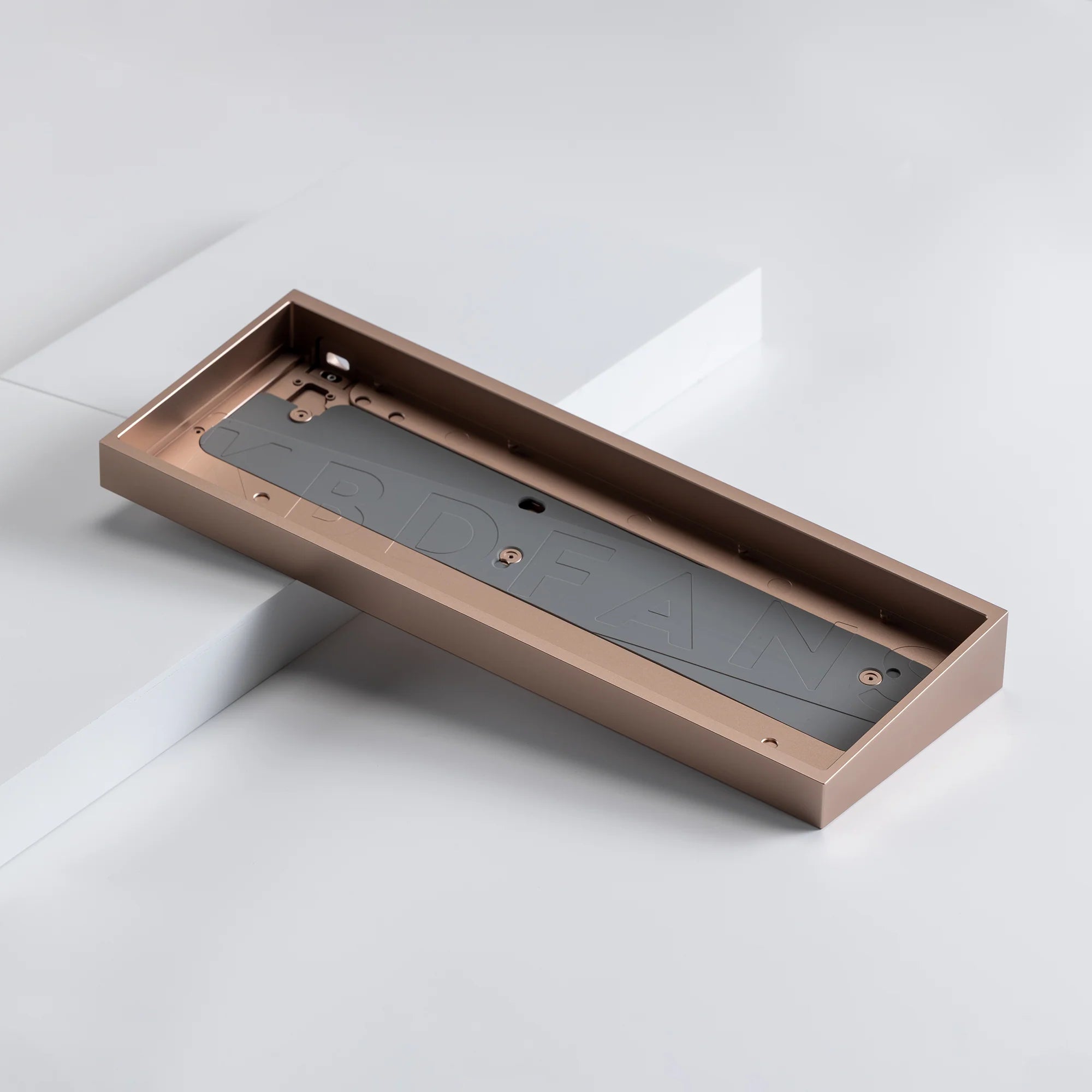

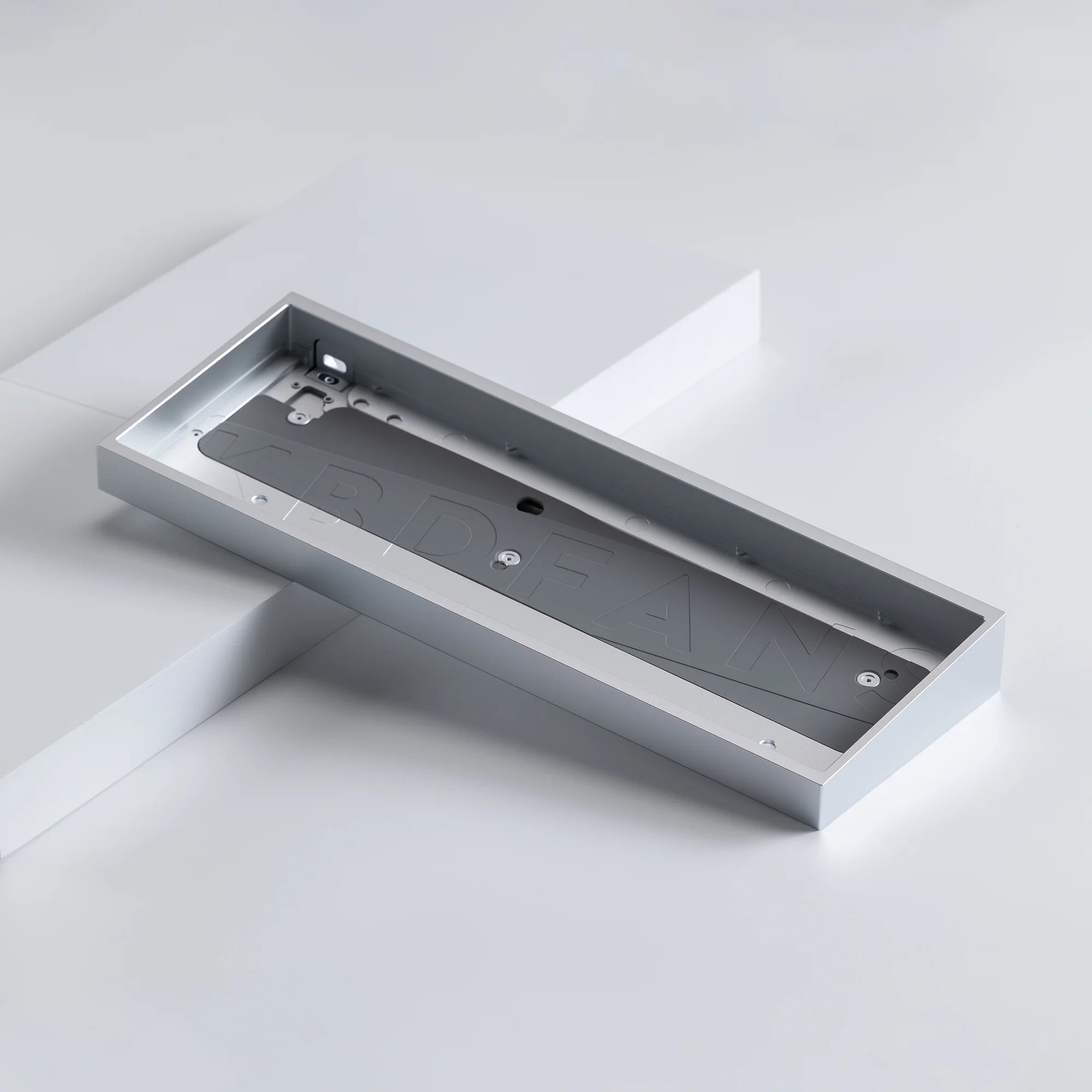

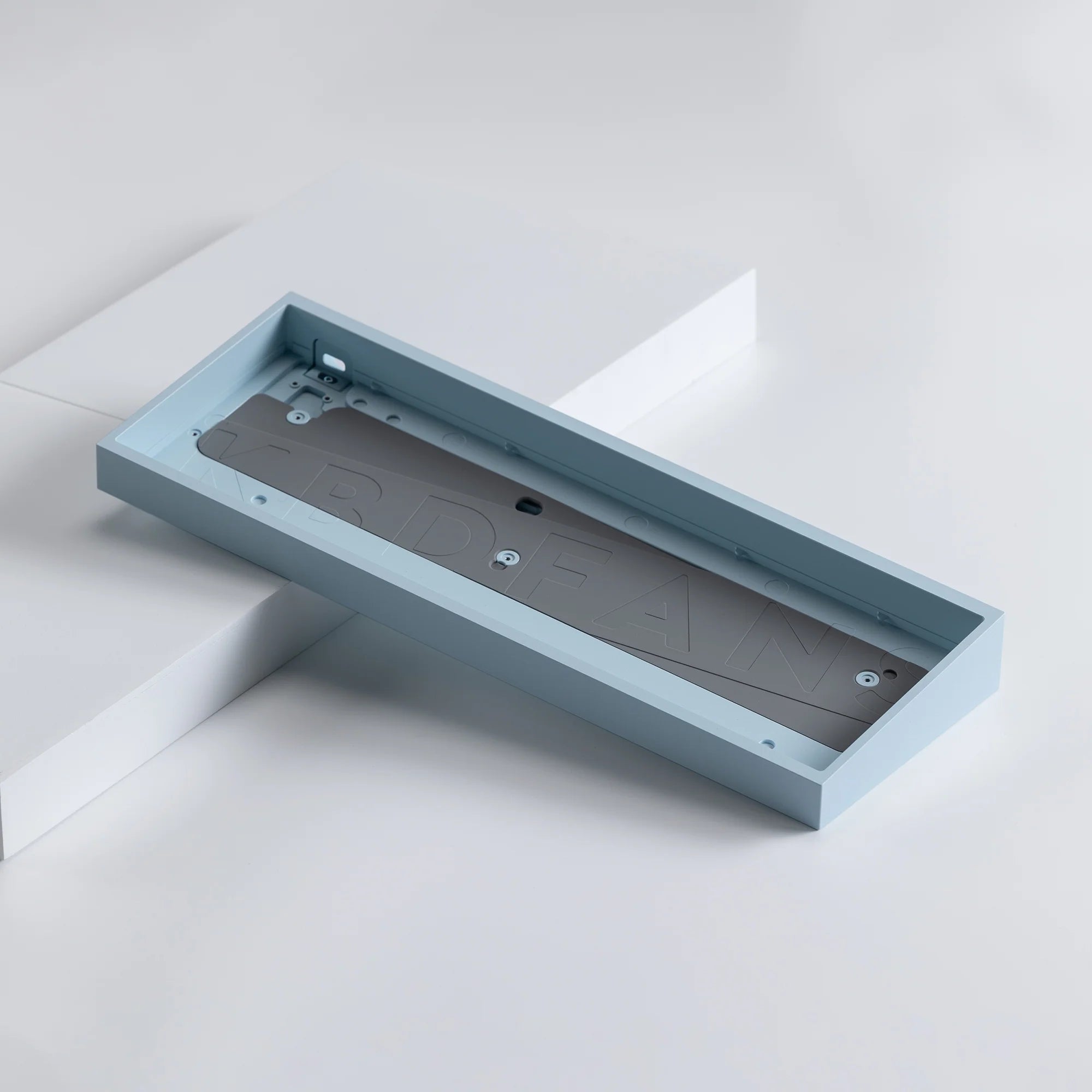

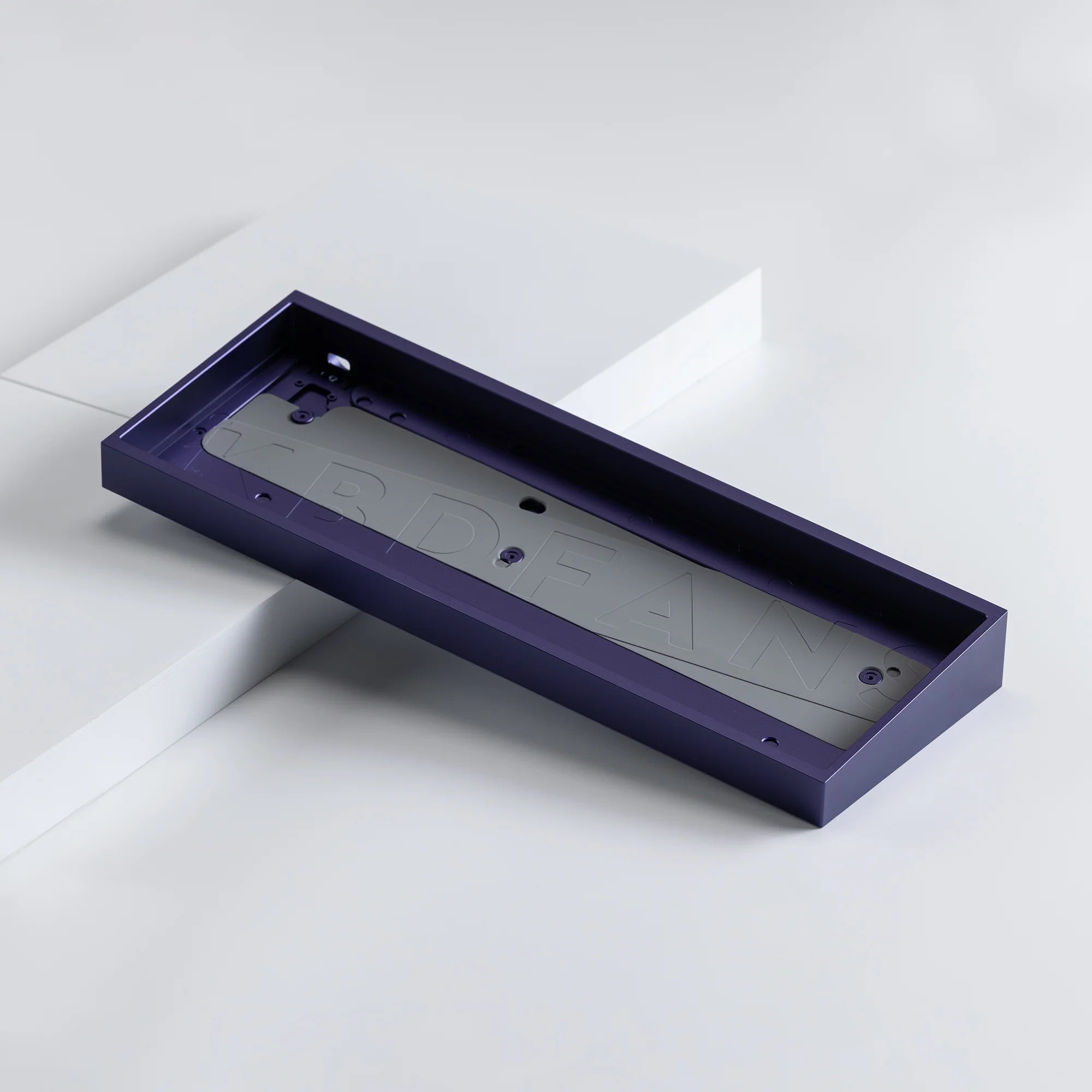

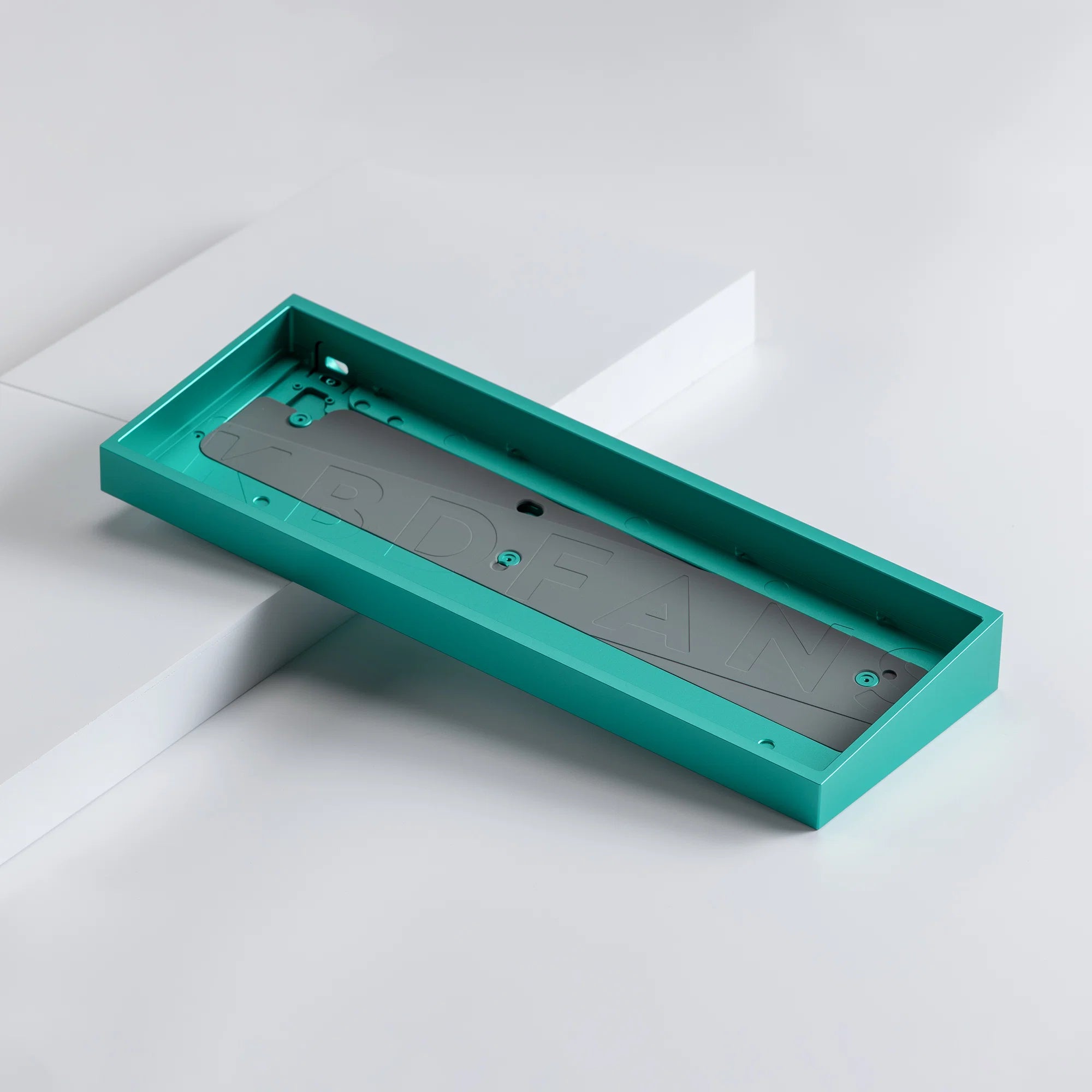

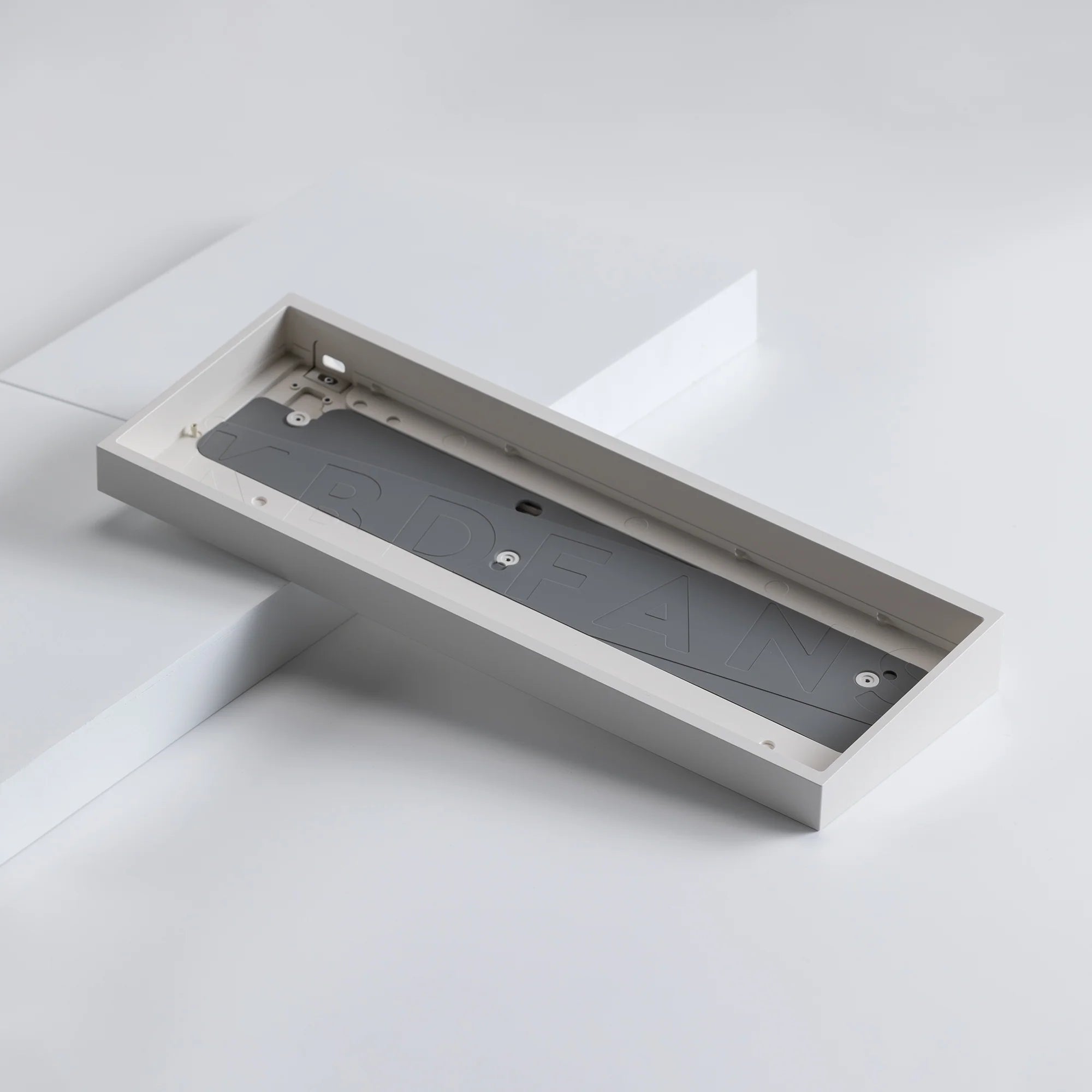

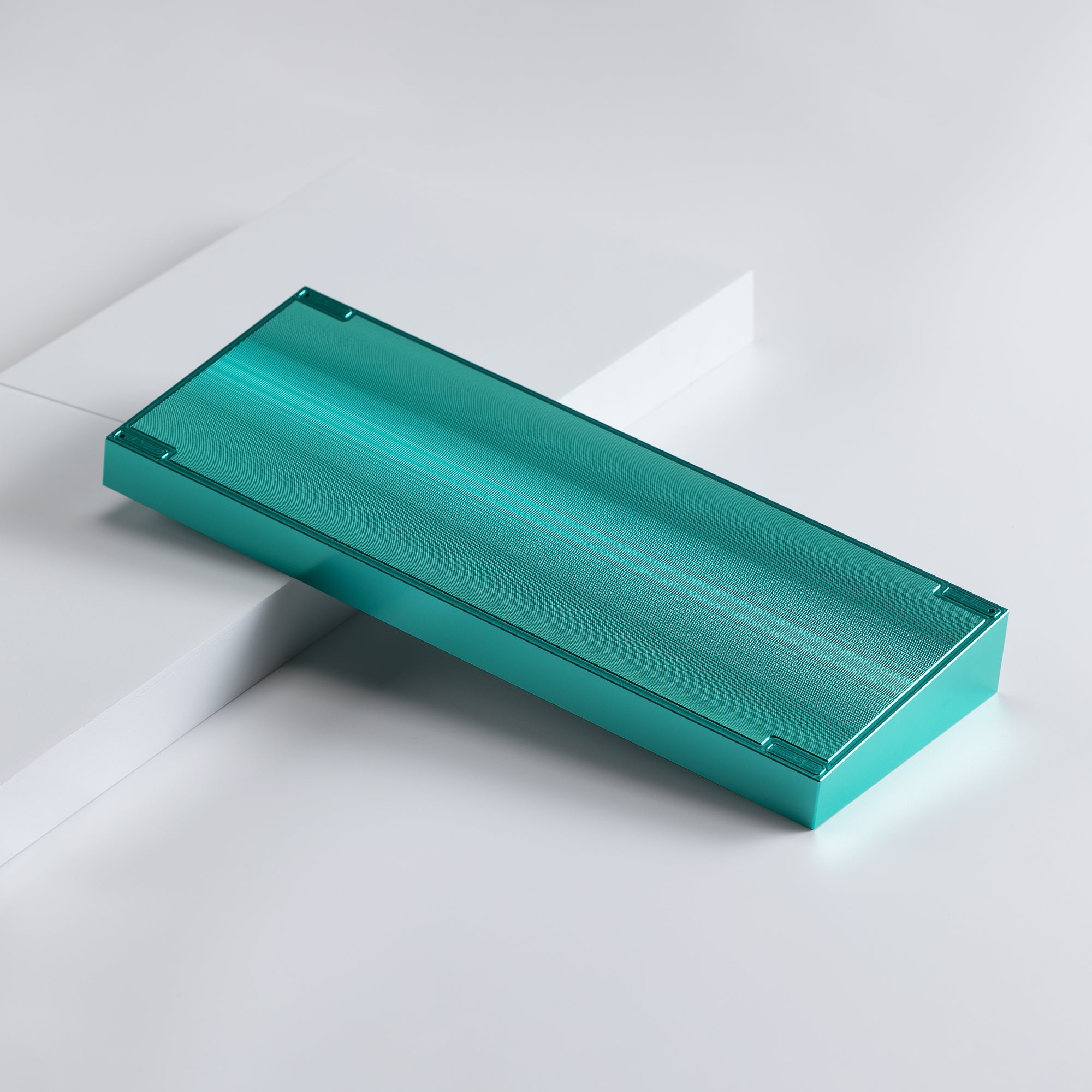

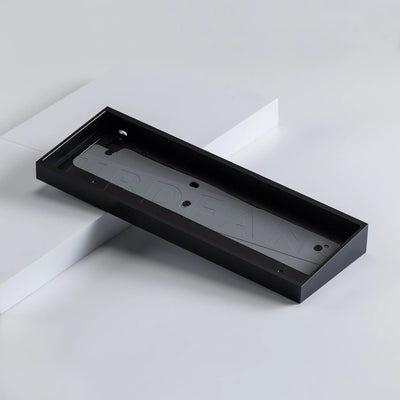

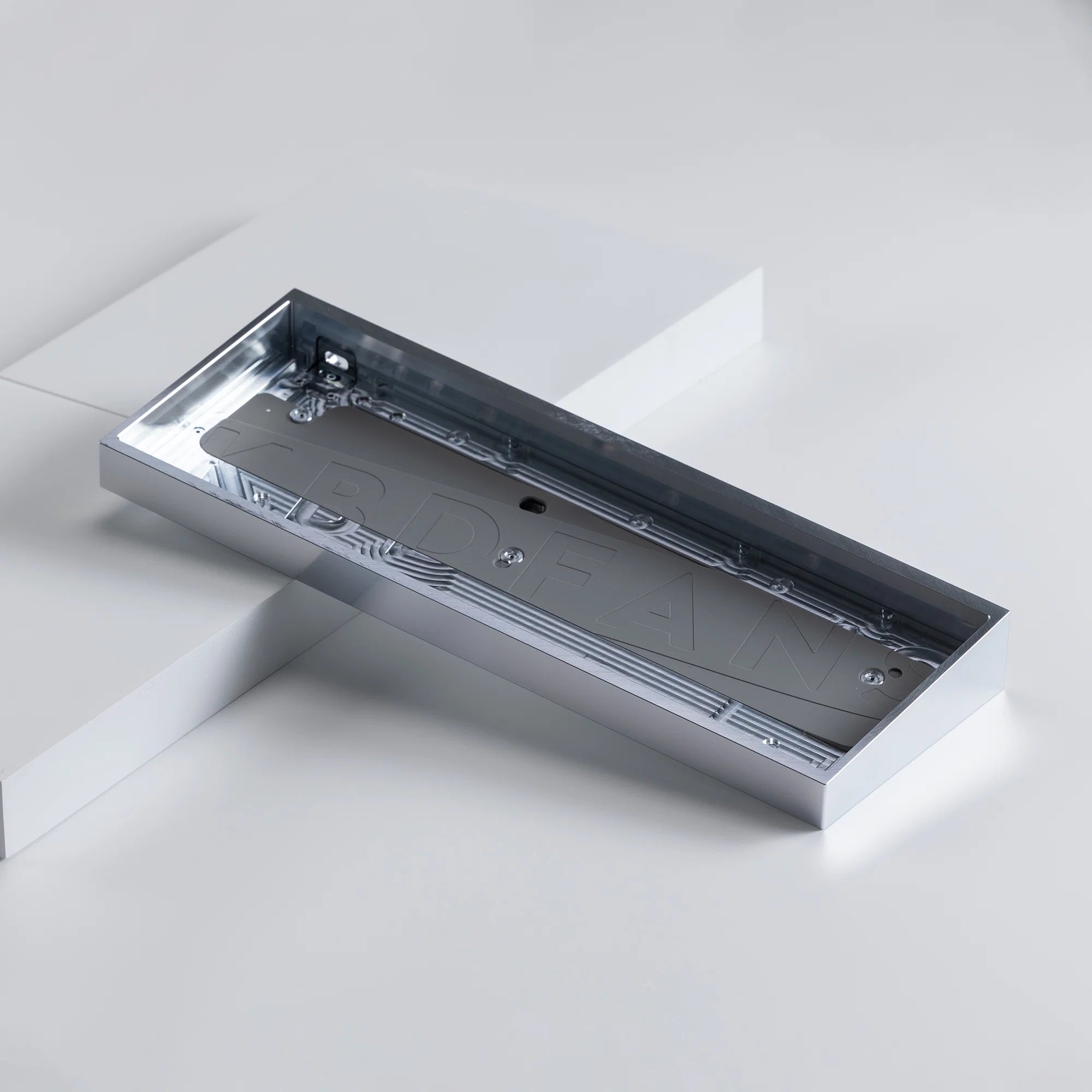

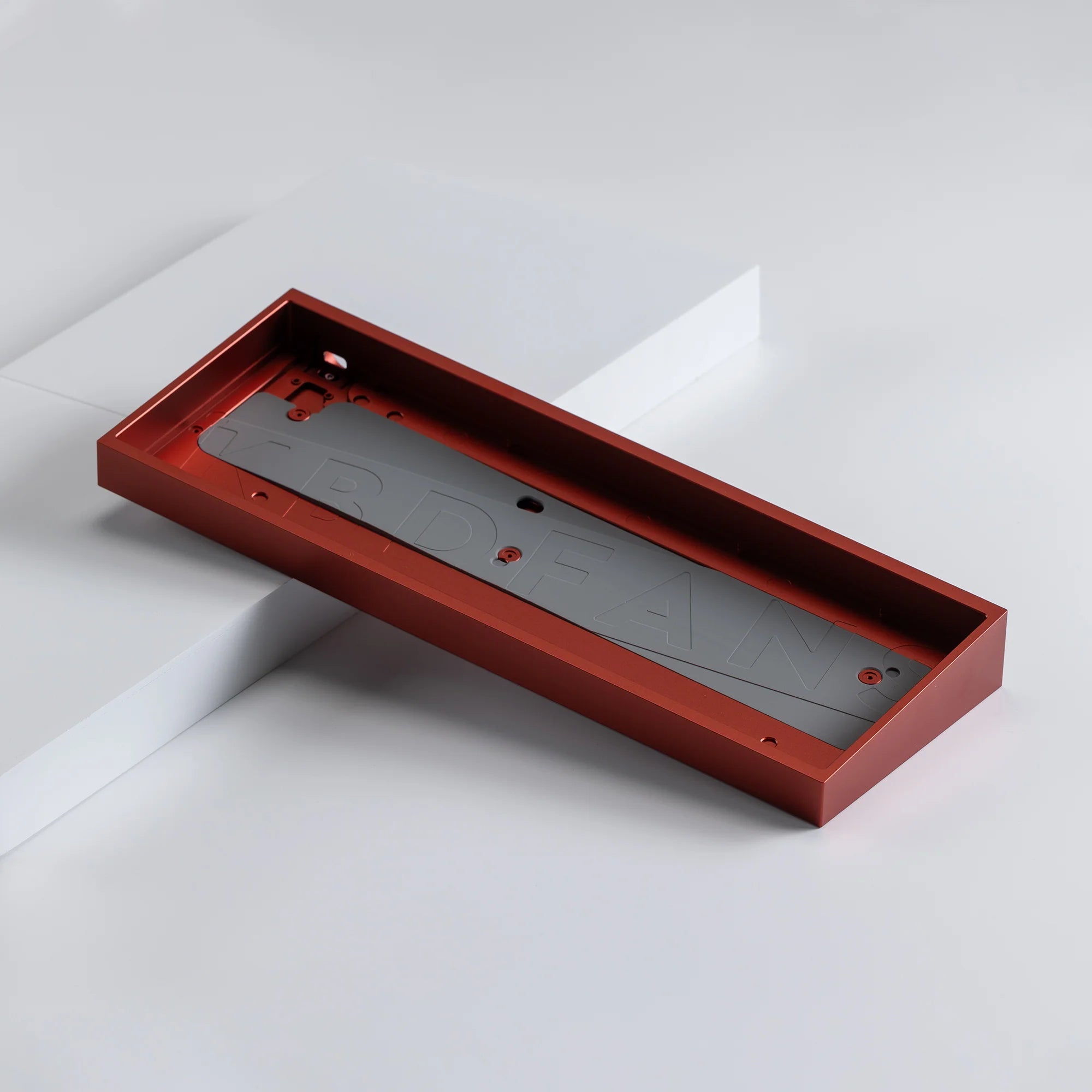

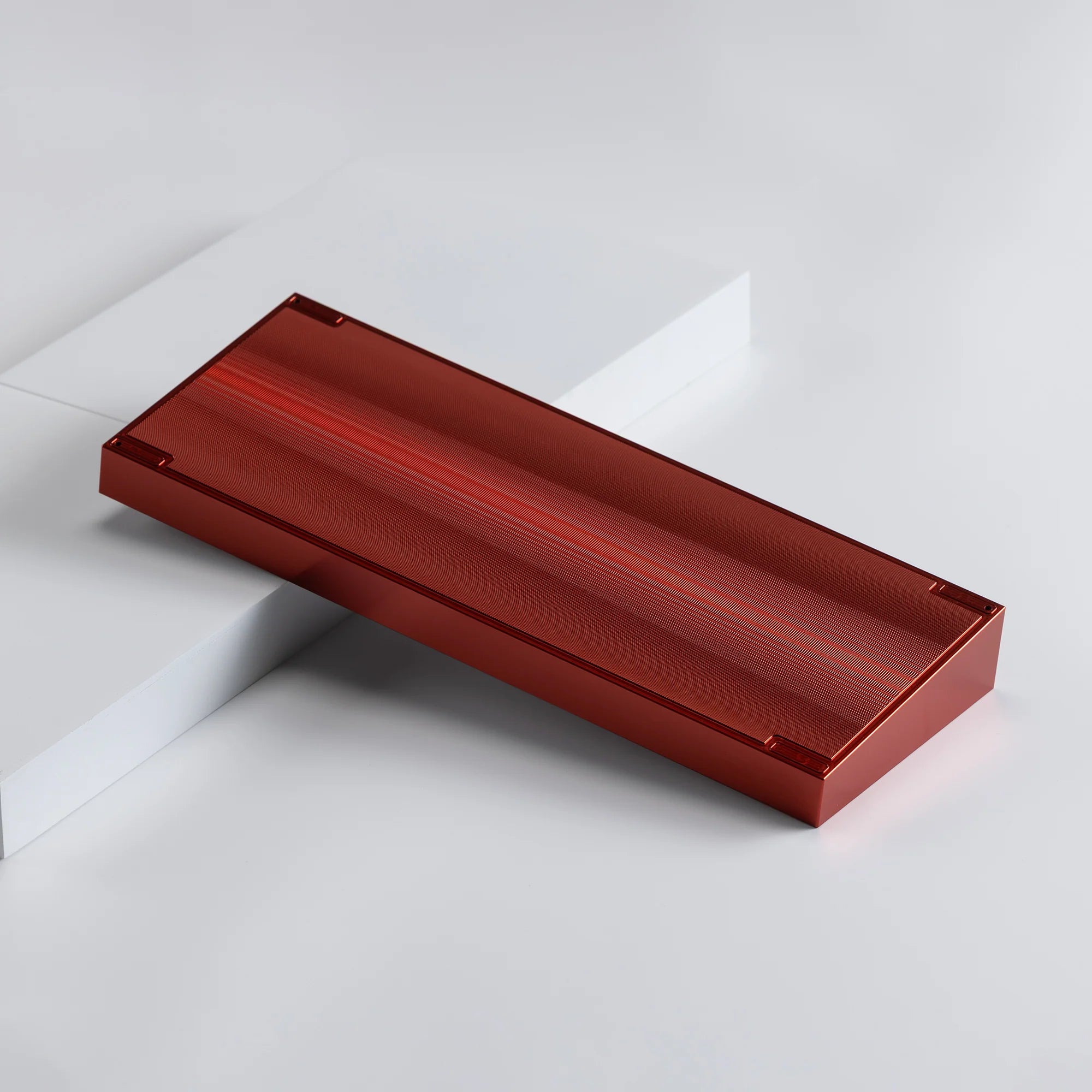

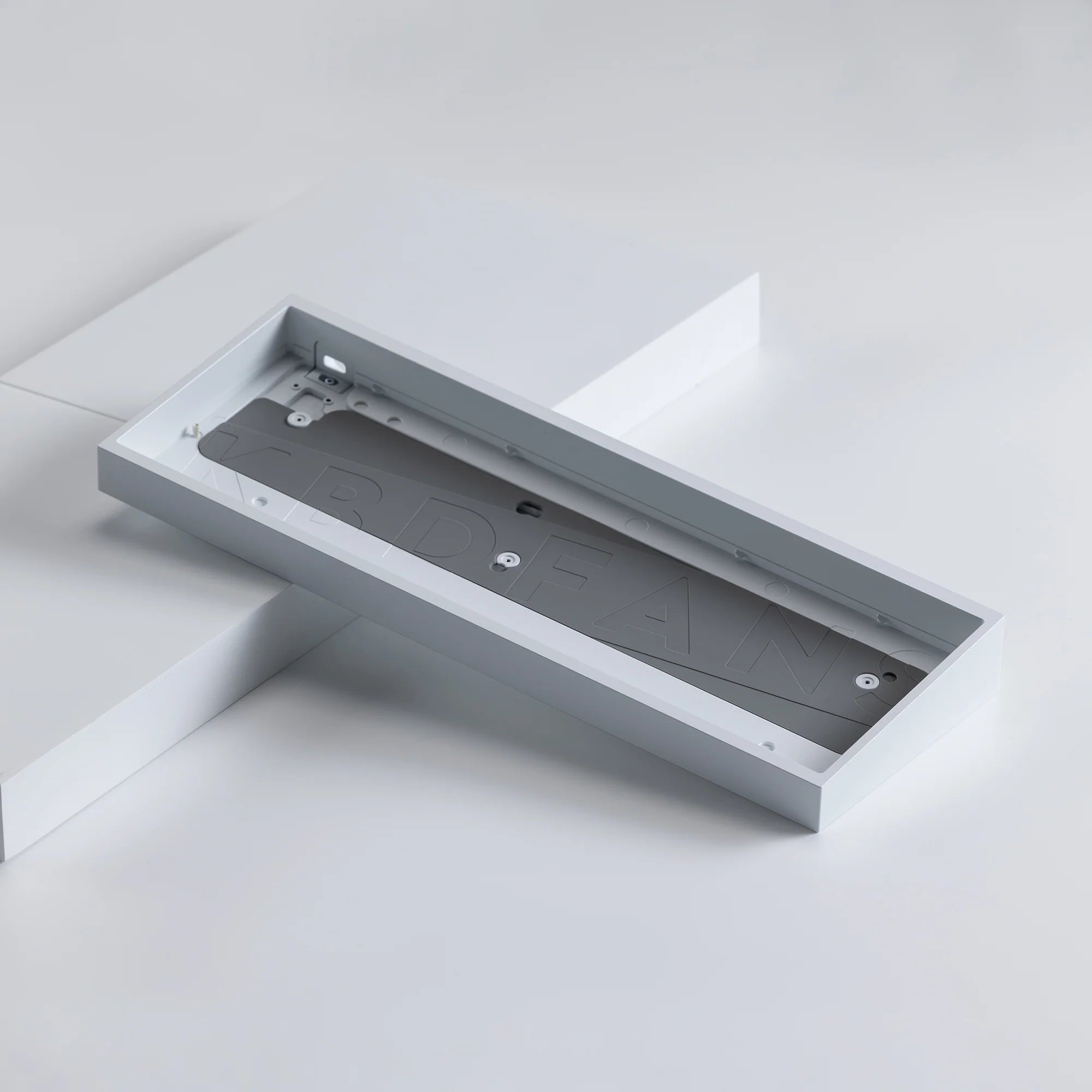

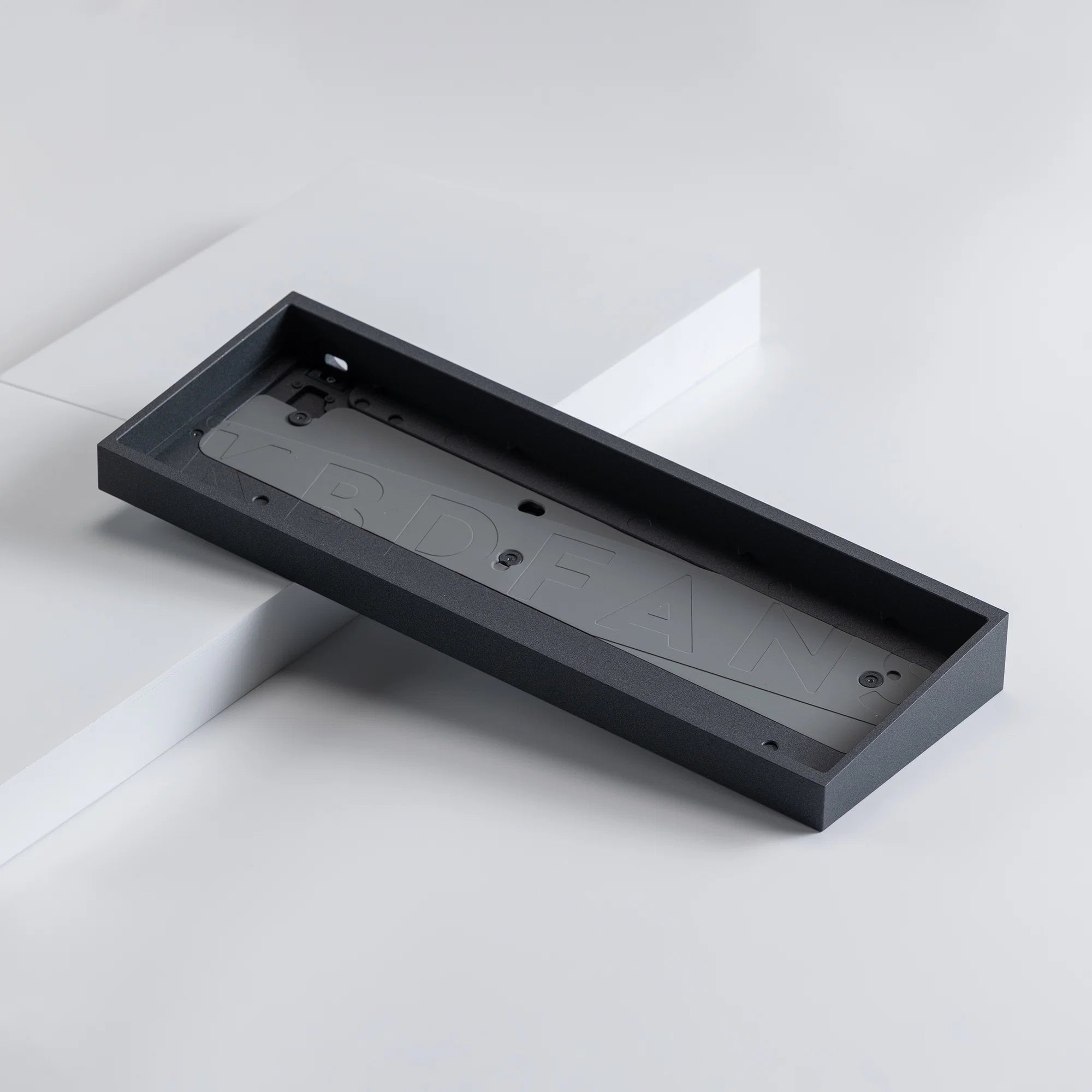

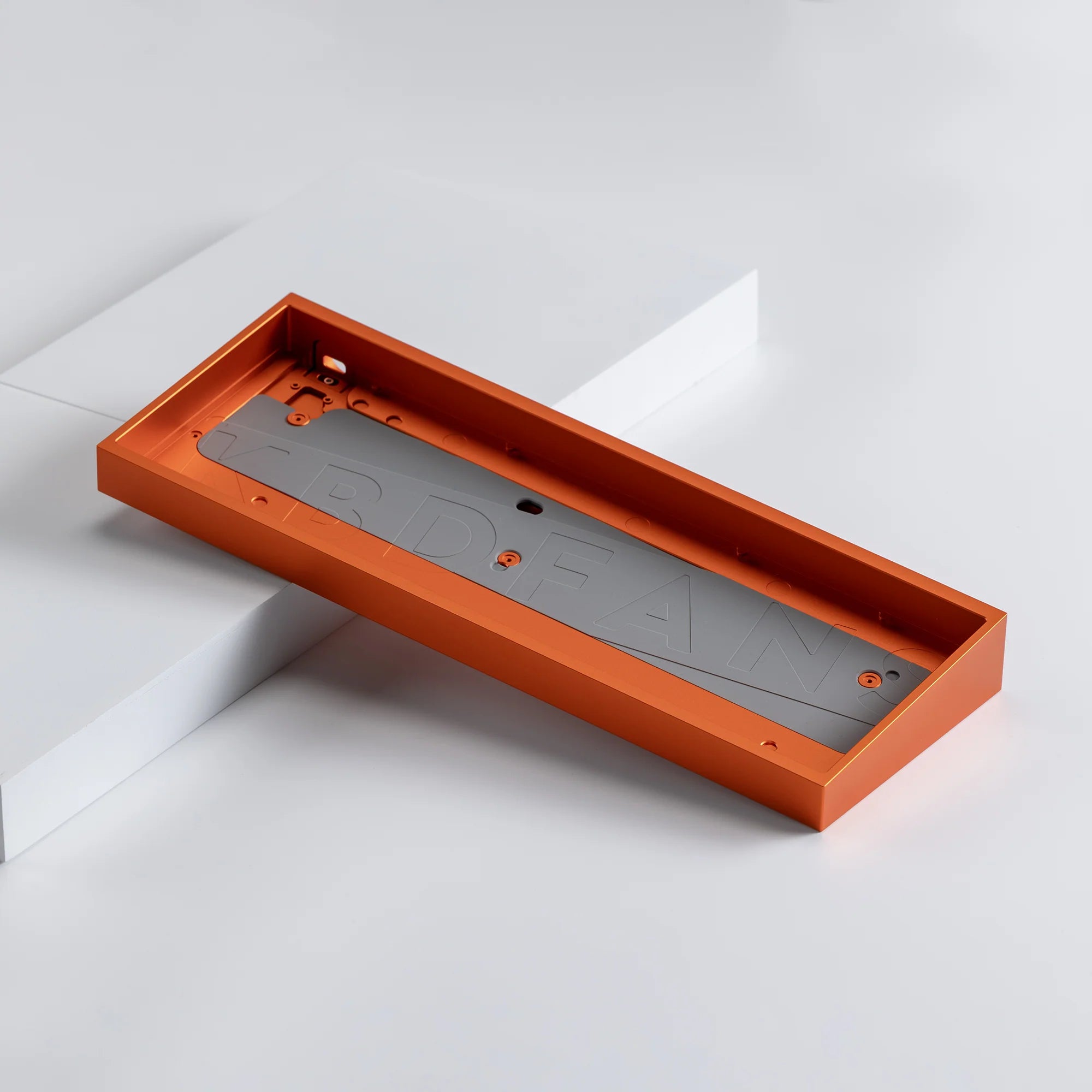

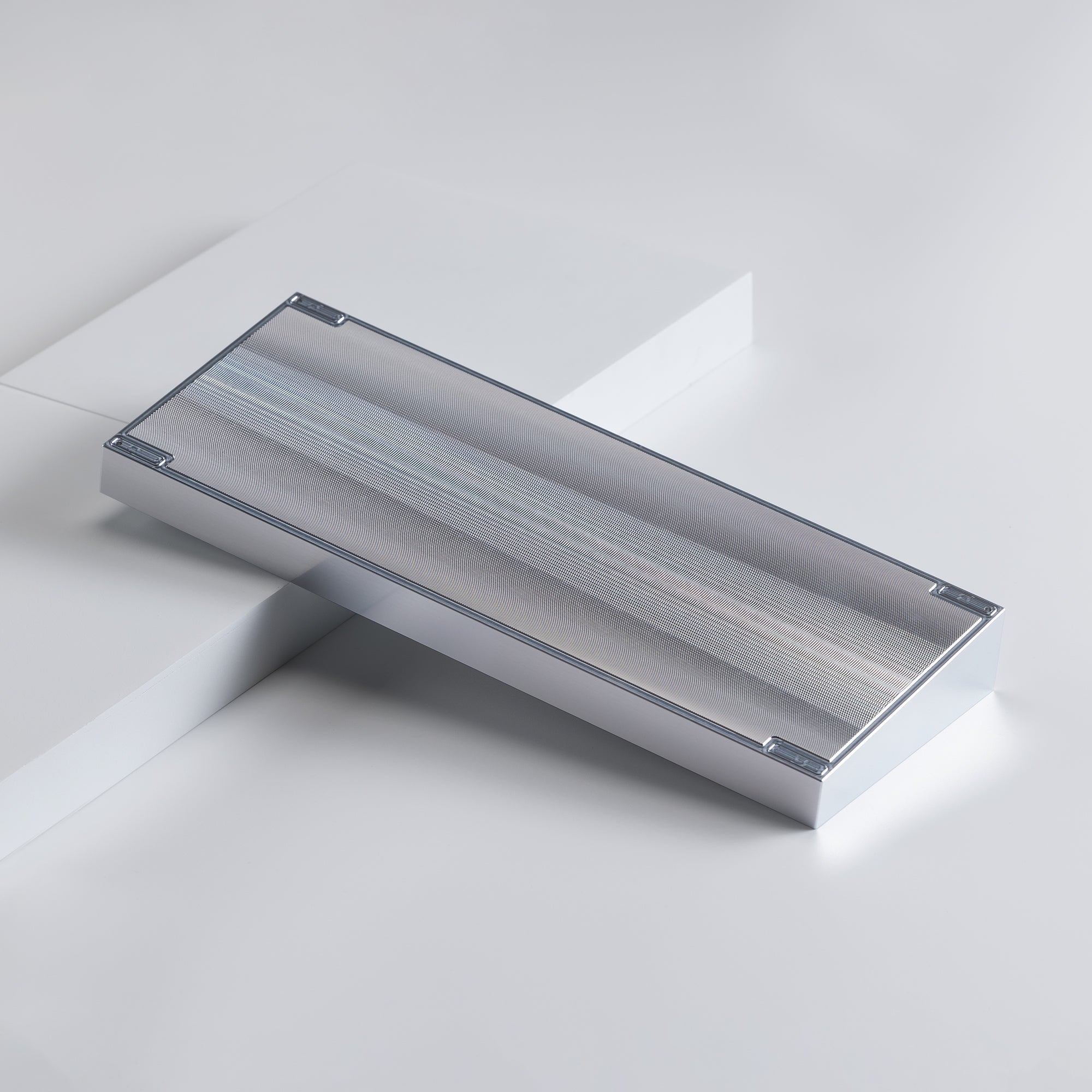

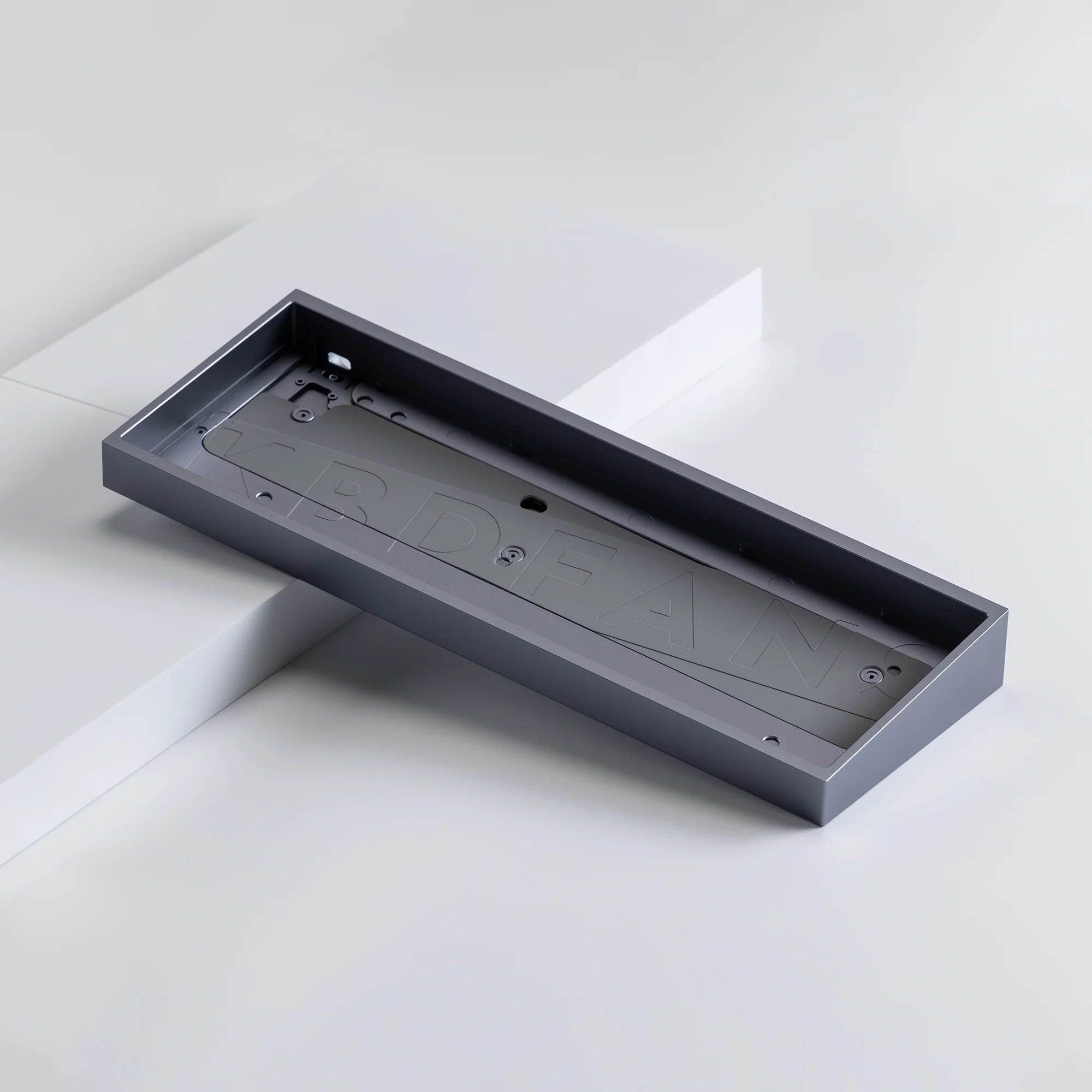

| Finishes | Anodized · E-coating · Acrylic · RAW |
