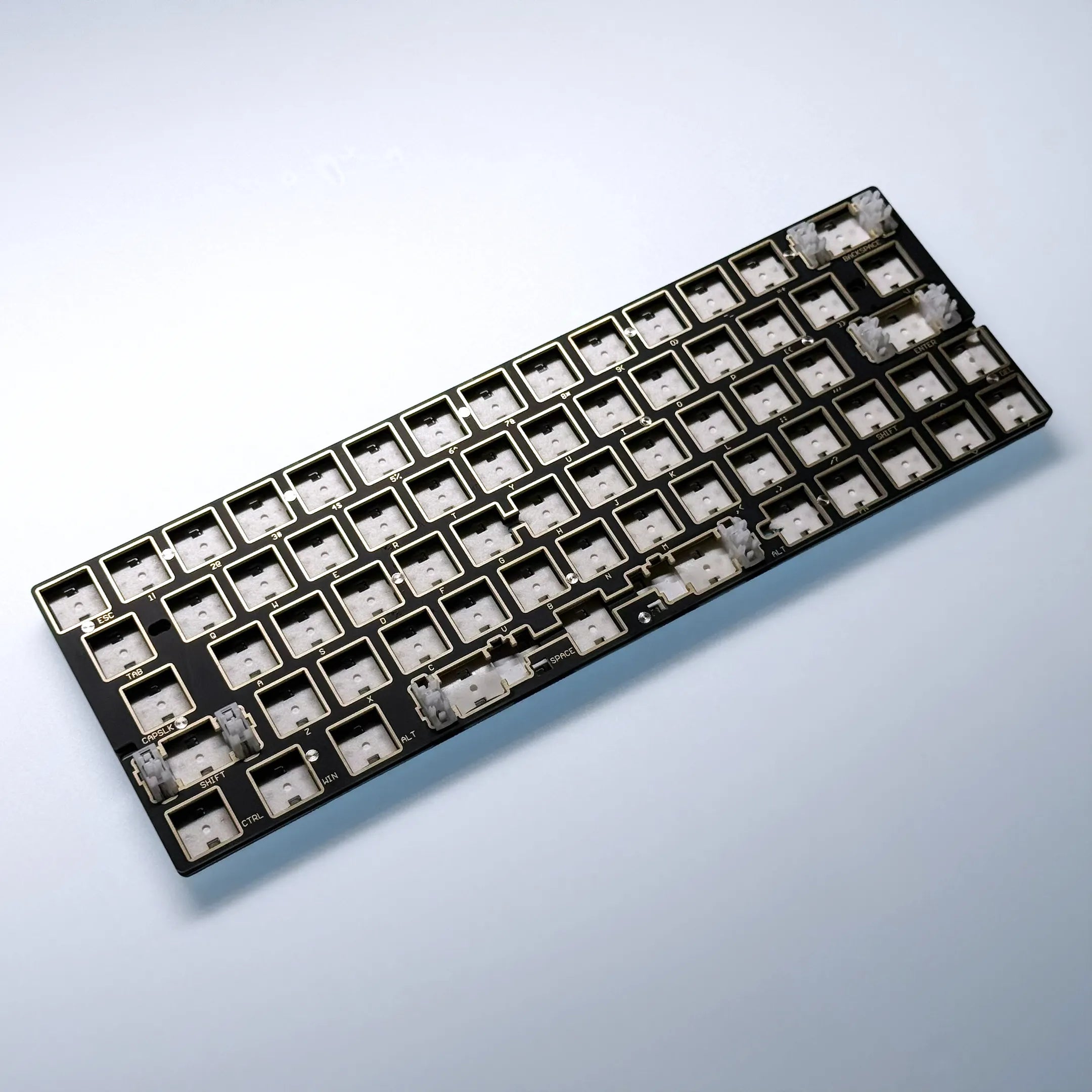

Everglide Su66 Max PCB Module Black Gold Fr4
Everglide Su66 Max PCB Module Black Gold FR4
Everglide Su66 max PCB Module Black Gold Fr4
Everglide Su66 Max PCB Module
Everglide Su66 max PCB Module
Everglide Su66 Max PCB Module
Everglide Su66 Max PCB Module
Everglide SU66 Max PCB Module Dual Light
Everglide SU66 Max PCB Module underglow RGB
Everglide SU66 Max PCB Module 600Mhz Chip
Everglide SU66 Max PCB Module
Everglide SU66 Max PCB Module

Everglide SU66 Max PCB Module

$169.00 CAD
Plate
Plate: Silver Carbon Fibre
Keyboard Specifications
Layout
60%
Connection Type
Wired
In stock, ready to ship

Pickup available at Toronto KeyboardMan Showroom

Usually ready in 24 hours
Description
Description
Everglide · SU66 MAX

A 600 MHz magnetic keyboard PCB for the GH60 platform.

Everglide's flagship magnetic keyboard PCB module for the GH60 form factor — Hall Effect (magnetic) switch support, 600 MHz high-frequency MCU, 32,000 Hz scan rate, 8000 Hz polling, and 0.001 mm Rapid Trigger precision. Split spacebar layout, surround underglow lighting, and a complete tray-mount stack-up included in the box.

Magnetic / Hall Effect 600 MHz MCU 8000 Hz Polling 32,000 Hz Scan 0.001 mm RT GH60 Compatible

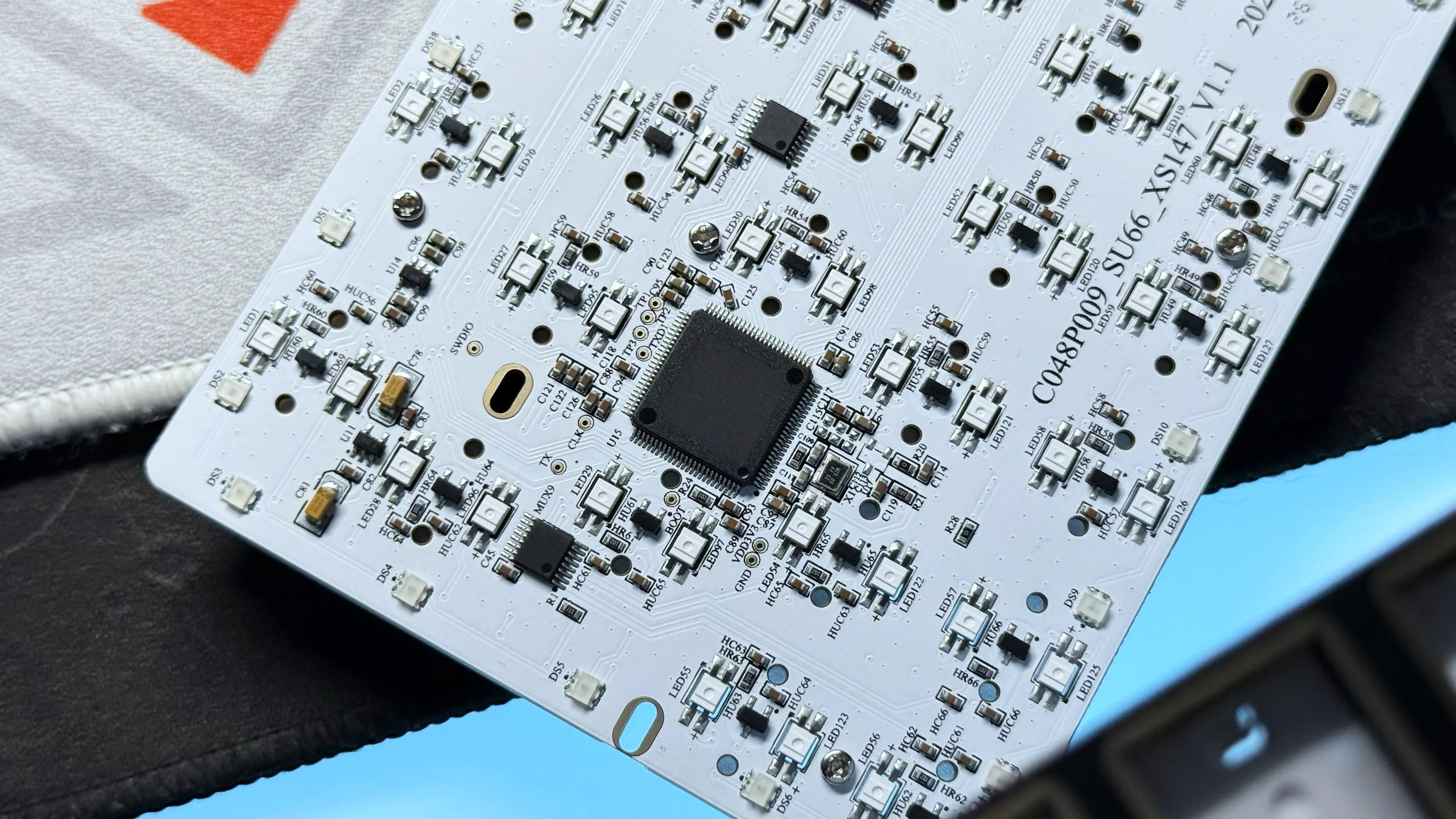

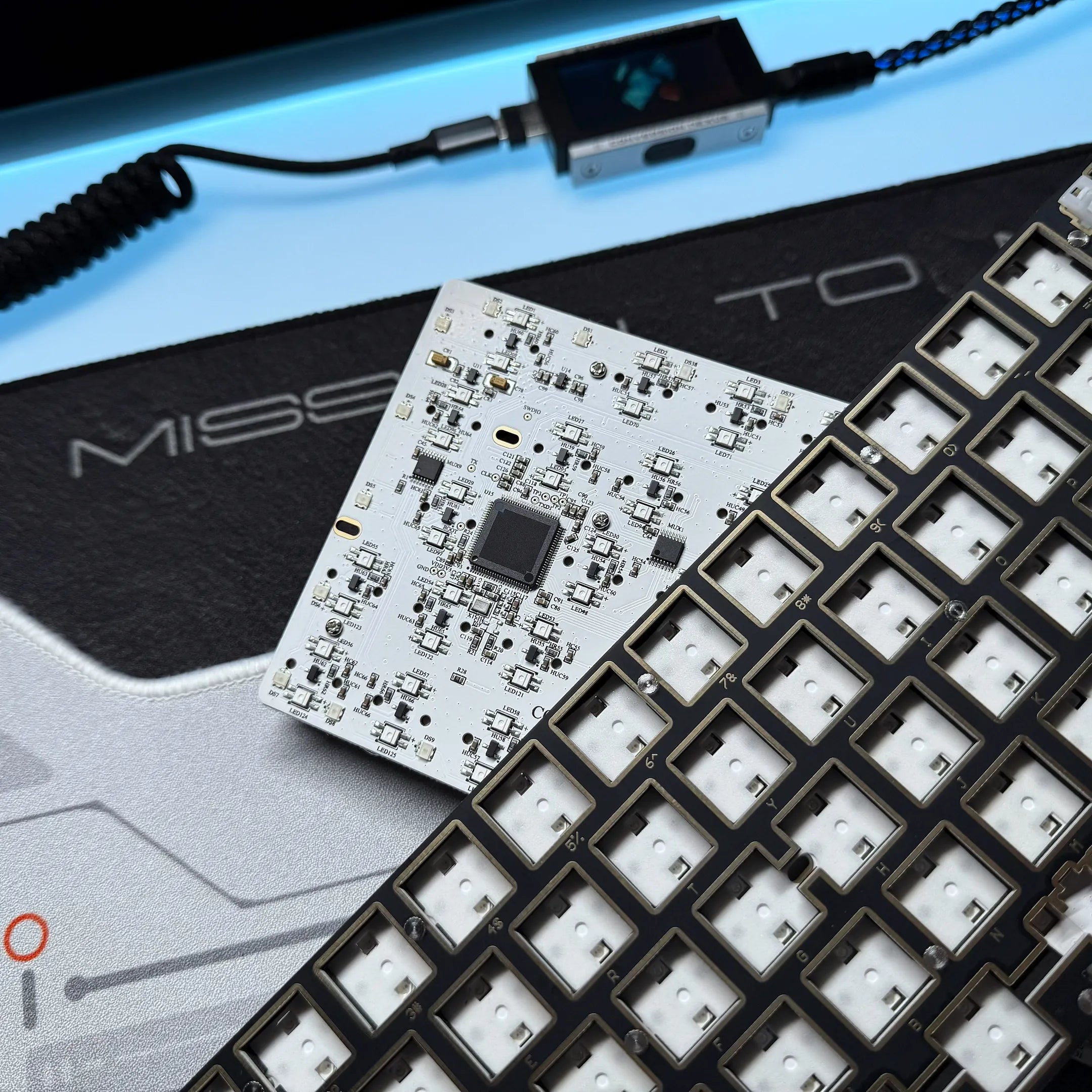

600 MHz MCU

High-frequency chip. Sub-millisecond response.

The SU66 MAX runs on a 600 MHz high-frequency MCU paired with a high-speed scan matrix — driving a 0.06 ms input latency, 32 kHz scan rate, and 8 kHz polling end-to-end. That's the headroom magnetic switches need for Rapid Trigger to actually behave like Rapid Trigger.

Everglide SU66 MAX magnetic keyboard PCB module — 600 MHz high-frequency MCU close-up

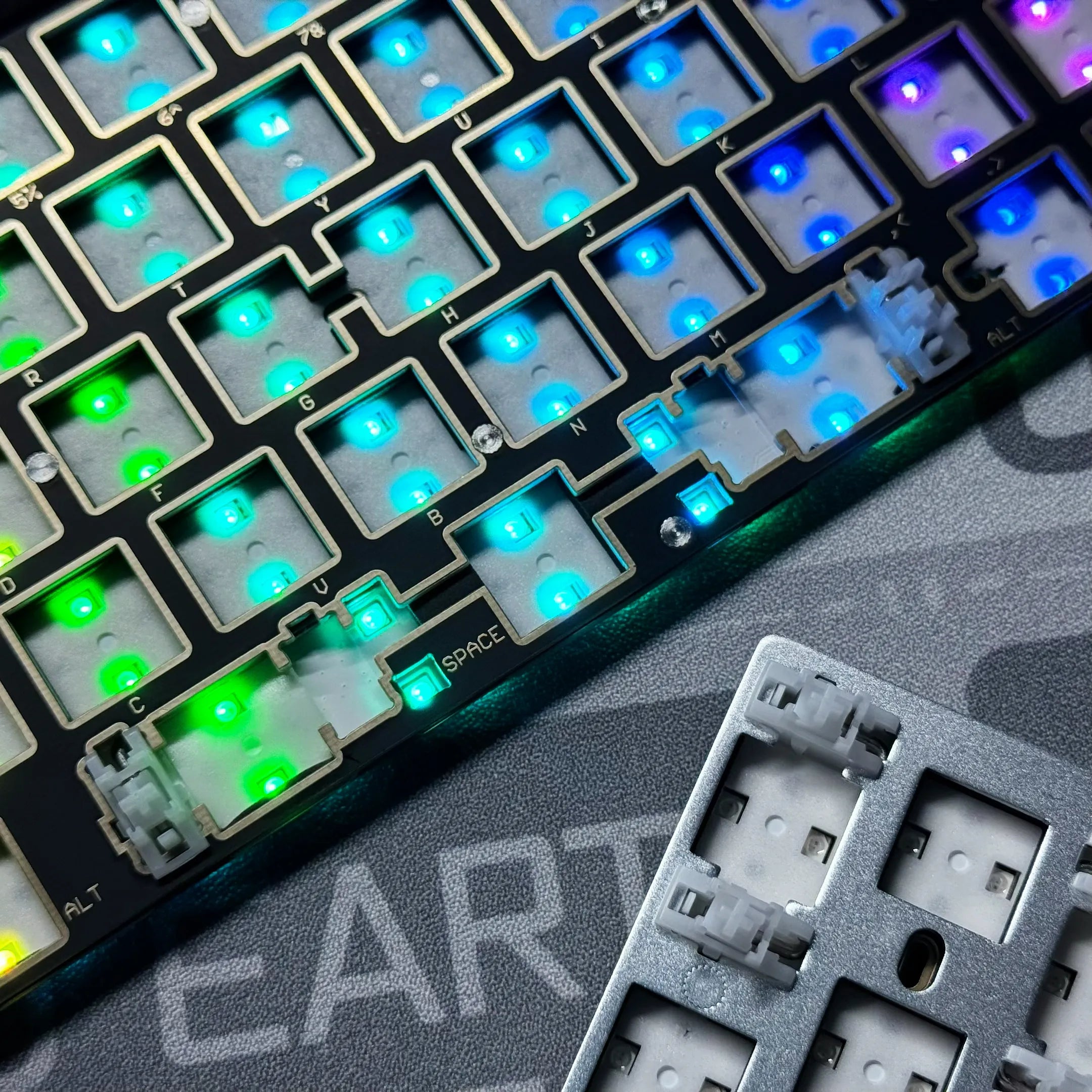

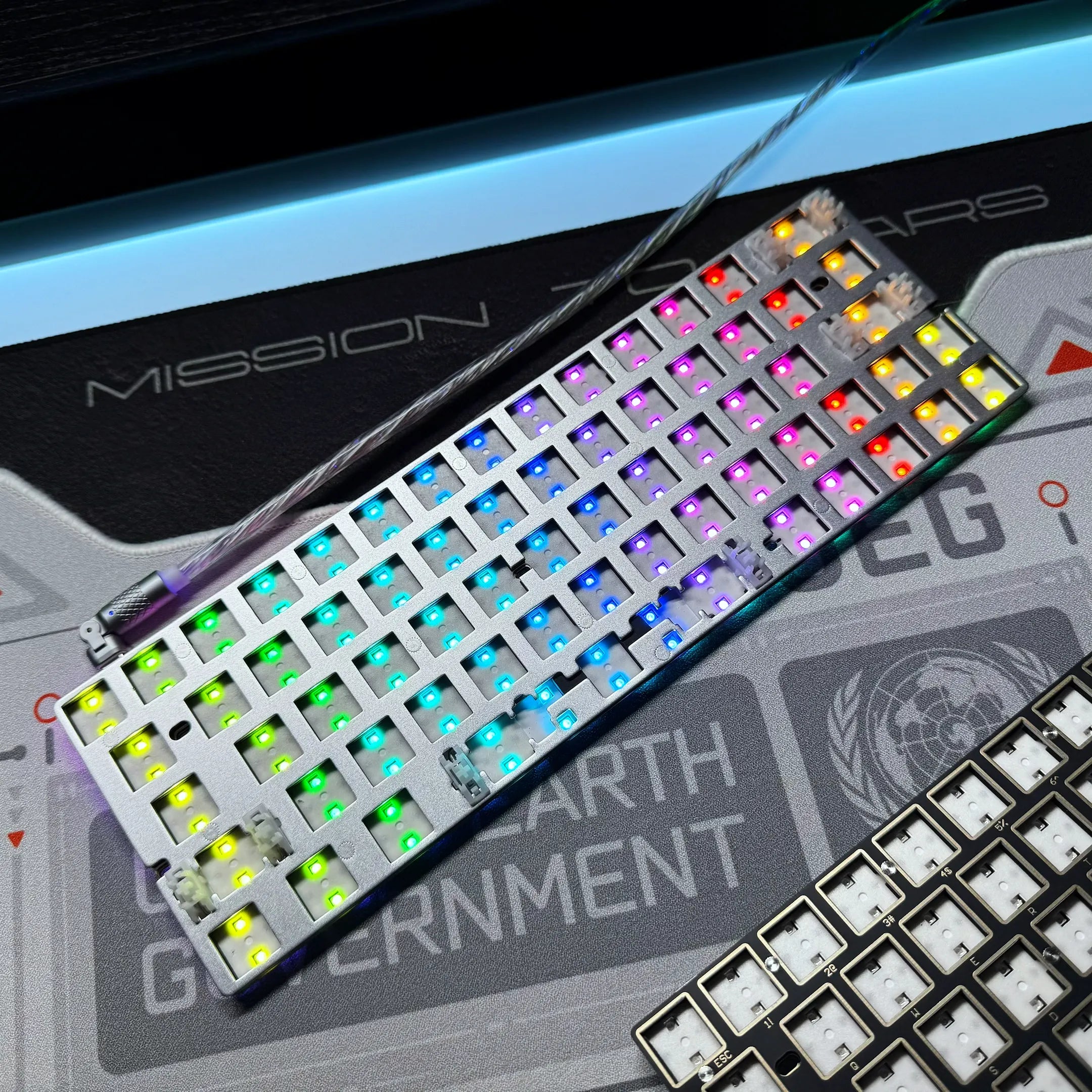

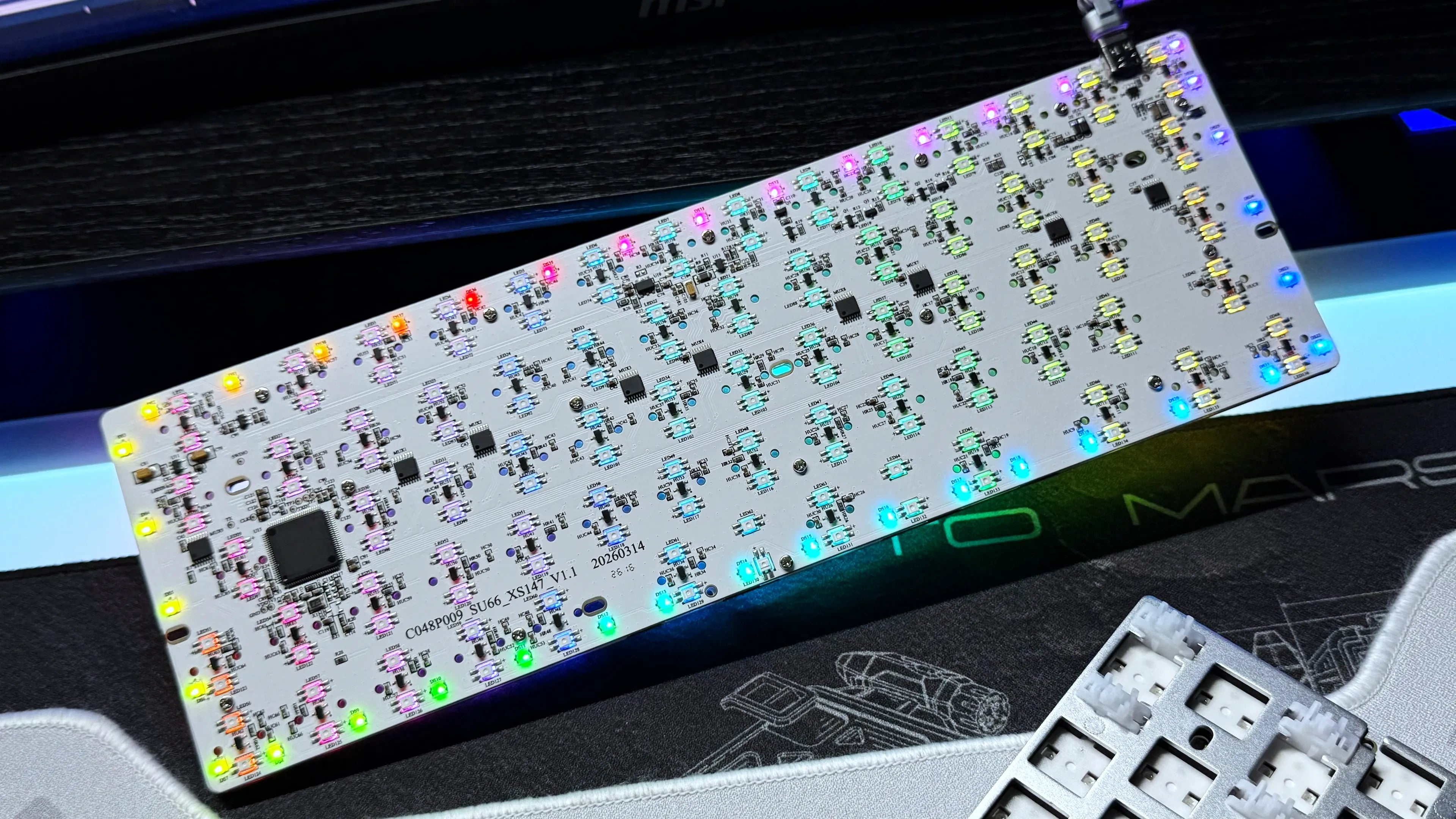

Surround underglow

Full RGB top, ring of light below.

136 per-key RGB LEDs on top, 38 underglow LEDs wrapping the rear of the PCB, plus 10 dedicated LEDs behind the spacebar. Bright, consistent, fully addressable through the driver.

Everglide SU66 MAX magnetic keyboard PCB rear-side surround underglow lighting with 38 LEDs
Split spacebar

Split-space layout, GH60-compatible.

Split spacebar for the player who wants a dedicated layer trigger under the right thumb. Drops directly into any GH60-compatible case — no custom plate work, no daughterboard relocation, no rewiring. Build the magnetic keyboard you actually want.

Everglide SU66 MAX magnetic keyboard PCB with split spacebar layout in GH60-compatible case
Function demo

See it in action.

Web driver

Browser-based. No installer.

Configure Rapid Trigger, per-key actuation point, magnetic-switch calibration, lighting, and macros through the web driver at xsyd.top — open the page, plug in, configure. No installer, no system service.

Specifications

Spec sheet.

Platform Hall Effect / magnetic switch PCB
MCU 600 MHz high-frequency chip
Scan Rate 32,000 Hz
Polling Rate 8000 Hz
Input Latency 0.06 ms (high-speed matrix)
Rapid Trigger Precision 0.001 mm
Per-key LEDs 136 RGB
Spacebar LEDs 10 RGB
Underglow LEDs 38 RGB
Layout Split spacebar · GH60 compatible
Case Compatibility GH60 cases

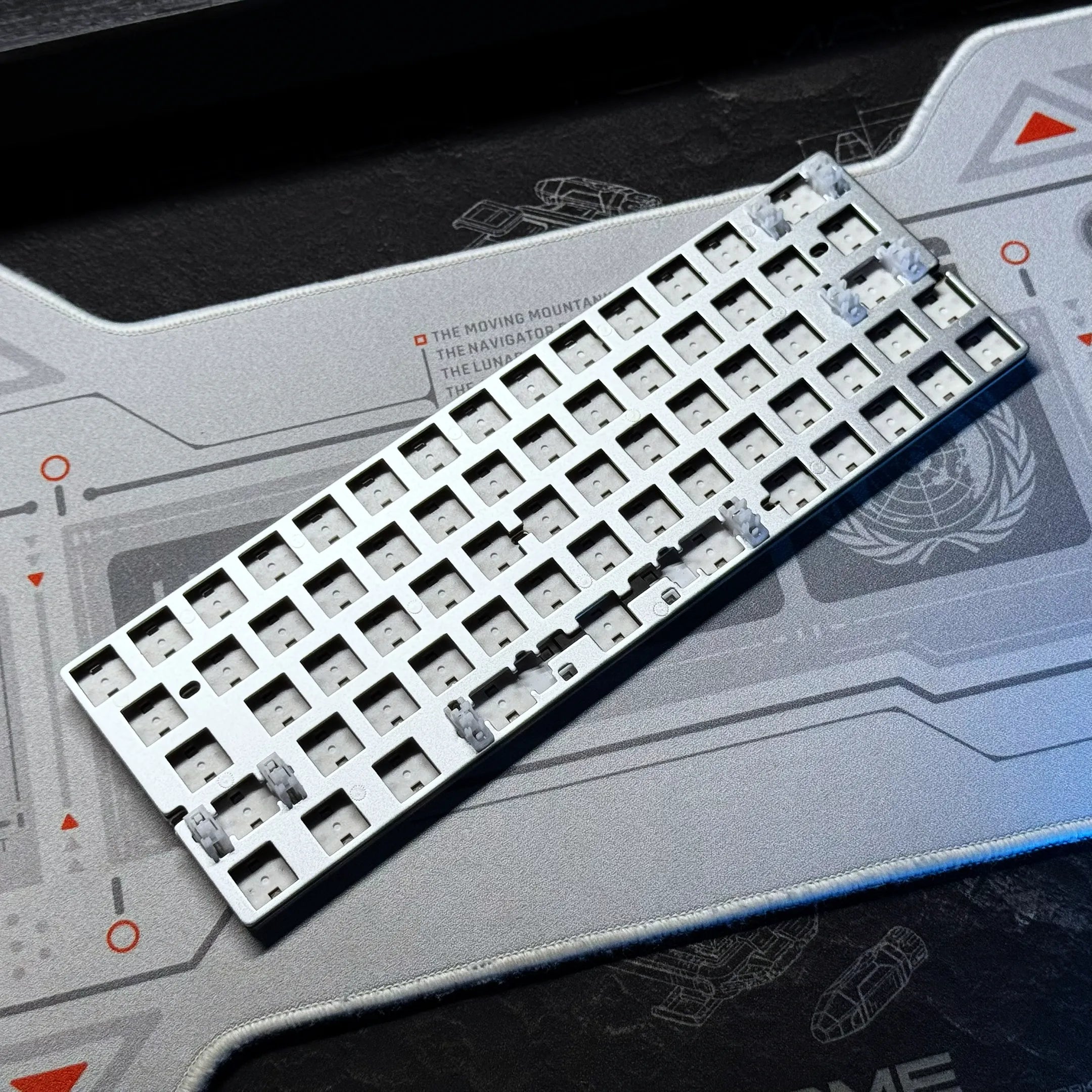

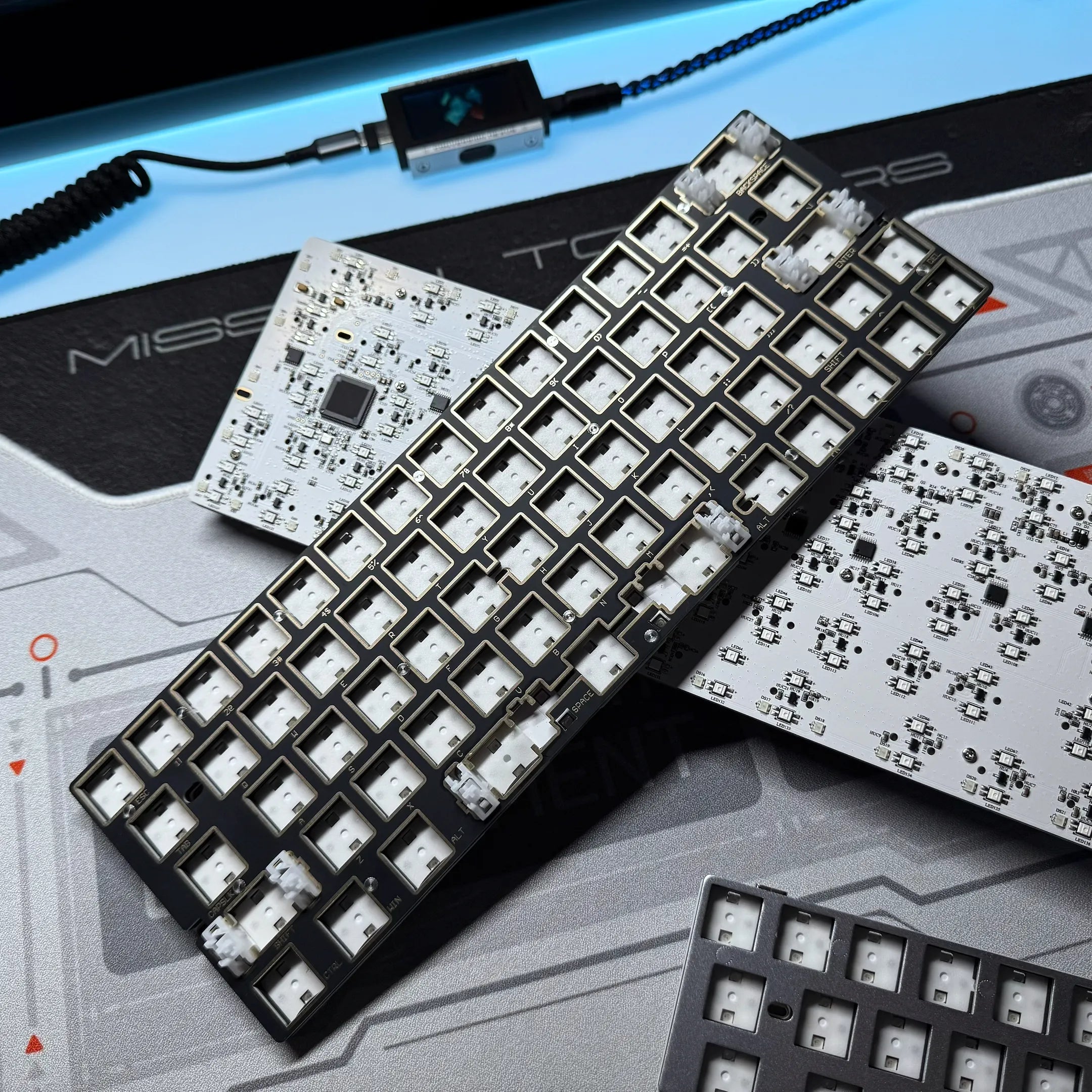

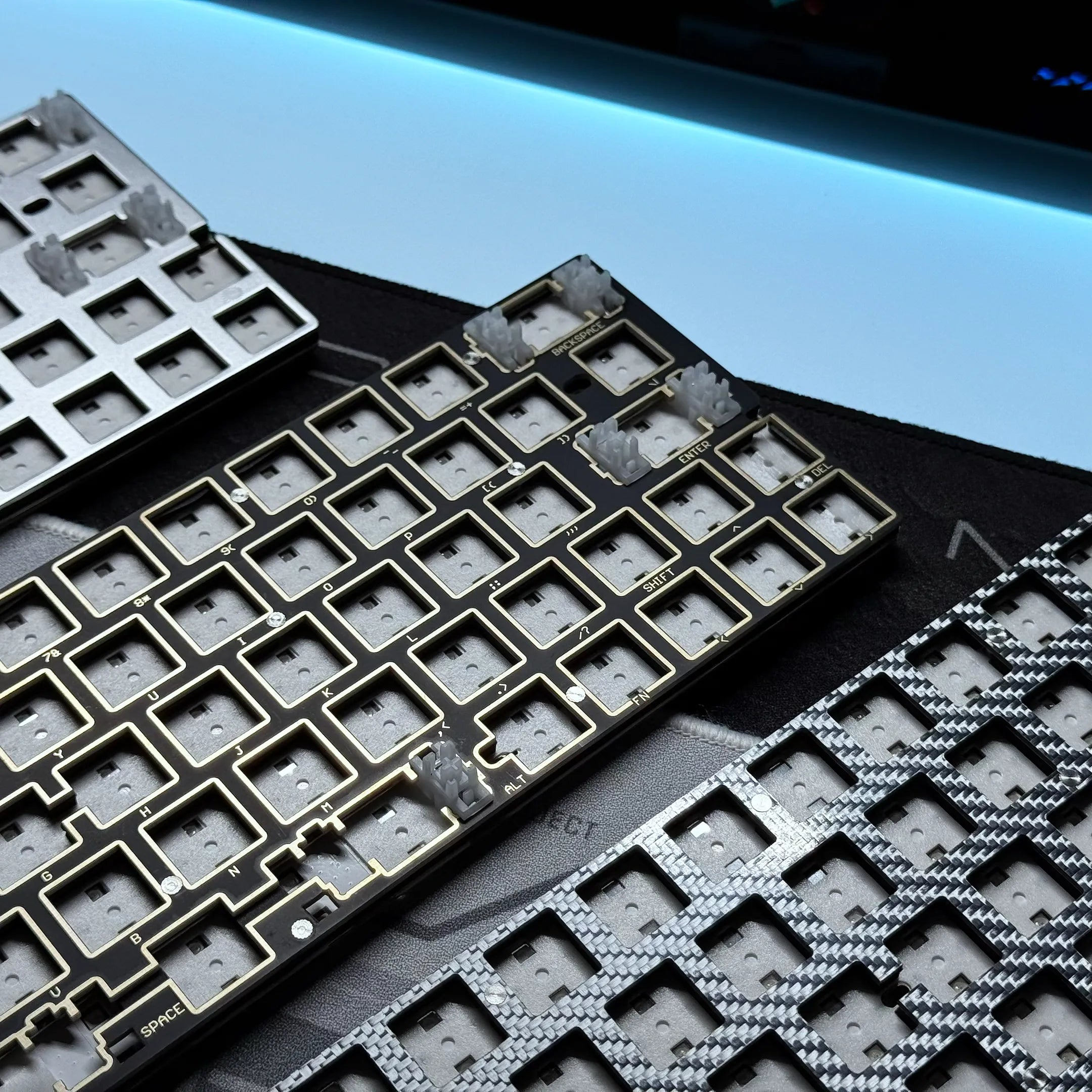

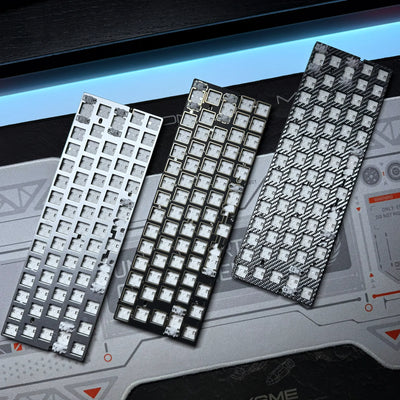

Plate Options Aluminum · Carbon Fiber · FR4

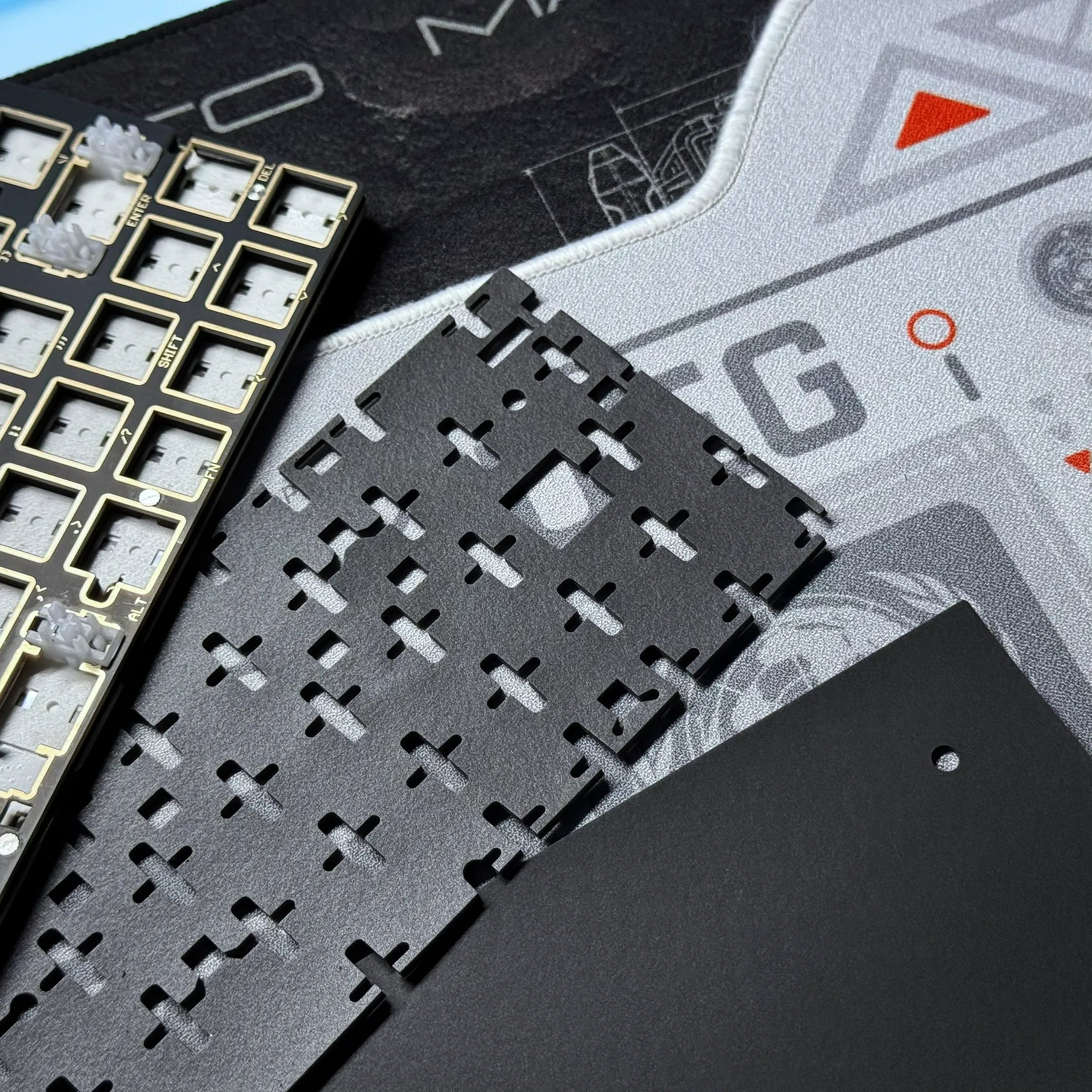

Sandwich Foam Poron · Cork fill
Included in Box PCB, plate, sandwich foam, switch pads, PET sound pad, bottom cotton
Driver xsyd.top — web-based, no installer
Brand Everglide
FAQ

Common questions.

What's a magnetic keyboard / Hall Effect PCB?
A magnetic keyboard uses Hall Effect (magnetic) switches instead of traditional mechanical switches. Each switch has a small magnet whose position the PCB reads continuously — that's what makes features like Rapid Trigger and per-key actuation-point adjustment possible. The SU66 MAX is the PCB that brings all of that to a GH60 build.
Does this PCB include switches?
No — the SU66 MAX is a PCB module. It ships with the plate, sandwich foam, switch pads, PET sound pad, and bottom cotton, but you supply your own magnetic (Hall Effect) switches.
Which magnetic switches does it support?
Mainstream Hall Effect / magnetic switches. Compatibility details should be confirmed against your specific switch model before ordering.
Will this fit my existing GH60 case?
Yes — the SU66 MAX is designed for the GH60 form factor and drops into any GH60-compatible case. Split-spacebar layout is supported; if your case has a fixed standard-spacebar plate, you'll need a split-space-compatible plate (one is included with the module).
What does 0.001 mm Rapid Trigger precision mean?
The PCB samples magnetic-switch position to 0.001 mm resolution — that's the granularity at which it can detect press and release for Rapid Trigger behavior. Lower numbers mean smoother, more accurate actuation tracking.
Why both 32,000 Hz scan and 8000 Hz polling?
Scan rate is how often the PCB samples the magnetic switches internally. Polling rate is how often it reports to the PC. A high scan rate paired with a high polling rate keeps internal latency low so the reported state is always fresh.
Do I need to install a driver?
No installer required. The web driver runs in your browser at xsyd.top — plug in the PCB and configure directly.
