Owlab Ti HE Magnetic Switch
$6.80
4.88
8 reviews8
total reviews
In stock, ready to ship
Switch Spec
Switch Type: Magnetic Linear
Bottom-out Force: 40g / 50g
Initial Magnetic Flux: 120Gs
Bottom Magnetic Flux: 750Gs
Total Travel: 3.4mm
Top Housing: PC
Bottom Housing: Nylon (Closed-Bottom)
Stem Material: POM
Factory Lubrication: Yes
Factory-lubricated Hall Effect linear switch with a POM stem — engineered by Owlab, sold in a pack of 10.
Magnetic Linear40gf / 50gfFactory LubedPack of 10
Hall Effect Precision, Owlab Engineering

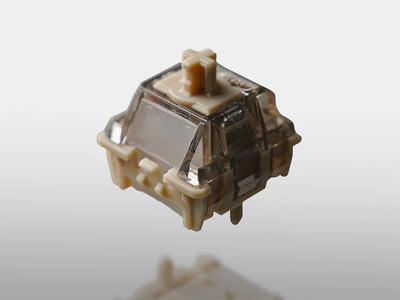

The Owlab Ti HE Magnetic Switch is a factory-lubricated magnetic linear switch built by Owlab for Hall Effect keyboards. The Owlab Ti HE pairs a POM stem with a PC top housing and a closed-bottom Nylon base, delivering a controlled linear keystroke tuned for Hall Effect gaming and daily typing. Each order ships a pack of 10 — available in 40gf and 50gf bottom-out force variants.
Choose Your Force
Owlab Ti HE linear switches ship in two bottom-out force profiles to match your play and typing style.
40gf
Light & Fast
The 40gf Owlab Ti HE magnetic switch favours low-effort actuation — suited to reactive gaming and rapid key-spam where finger fatigue matters.
50gf
Balanced & Deliberate
The 50gf Owlab Ti HE linear switch delivers a weightier, more deliberate keystroke — a stronger tactile baseline for typing accuracy and controlled gameplay.
Construction
Top HousingPC
Polycarbonate top housing for crisp acoustic character.
Bottom HousingNylon
Closed-bottom Nylon base — contains the keystroke acoustically.
StemPOM
POM stem travels smoothly through the 3.4 mm path.
Magnetic Flux Range
Owlab Ti HE magnetic switches deliver a wide, well-defined flux range so your Hall Effect PCB can tune actuation points accurately and drive rapid-trigger behaviour with precision.
Initial Flux
120 Gs
Bottom-out Flux
750 Gs
Compatibility
Works With Hot-Swap HE Keyboards
Owlab Ti HE switches are Hall Effect magnetic switches built for hot-swap Hall Effect PCBs. Commonly installed on popular HE keyboards — Owlab for Wooting (Wooting compatible switches), Owlab for Hex80, Rainy75 HE, Centauri 60, Centauri 80, and Aurora 75.
As magnetic switches, the Owlab Ti HE does not use metal pins — the switch seats directly into a magnetic hot-swap socket. No soldering required.
Pack & Lube
Each order ships a pack of 10 Owlab Ti HE magnetic switches, factory lubricated out of the box for switch-to-switch consistency — no aftermarket lubing required.
Technical Specifications
Switch Type
Magnetic Linear (Hall Effect)
Bottom-out Force
40 gf / 50 gf
Initial Magnetic Flux
120 Gs
Bottom-out Magnetic Flux
750 Gs
Total Travel
3.4 mm
Top Housing
PC (Polycarbonate)
Bottom Housing
Nylon (Closed-Bottom)
Stem Material
POM
Factory Lubrication
Yes
Pack Size
10 switches
Manufacturer
Owlab
Frequently Asked Questions
What keyboards are Owlab Ti HE switches compatible with?
Owlab Ti HE magnetic switches work with hot-swap Hall Effect keyboards that accept standard magnetic switches. Commonly installed on Wooting keyboards, Hex80, Rainy75 HE, Centauri 60, Centauri 80, and Aurora 75.
What's the difference between the 40gf and 50gf versions?
Both are Owlab Ti HE linear switches with identical construction — only the bottom-out force differs. Choose 40gf for the lightest, fastest actuation; choose 50gf for a more weighted, deliberate keystroke.
Do Owlab Ti HE switches need soldering?
No. These are magnetic switches — they seat directly into a hot-swap Hall Effect socket with no metal pins and no soldering.
How many switches are included per pack?
Each order ships a pack of 10 Owlab Ti HE magnetic switches.
Are these factory lubricated?
Yes. Every Owlab Ti HE switch is factory lubricated for consistent feel and sound from switch to switch — no aftermarket lubing required.
