WS Flux Diamond HE Magnetic Switch — Hall Effect Linear
Four colourways cut from one Diamond core. A factory-lubed Hall Effect Switch with a 3.6 mm center magnet, built for hot-swap magnetic keyboards.
Ocean Heart · ThockyCullinan · Deep ClackyTears of the Sun · ThockyStar Kiss · Deep Clacky

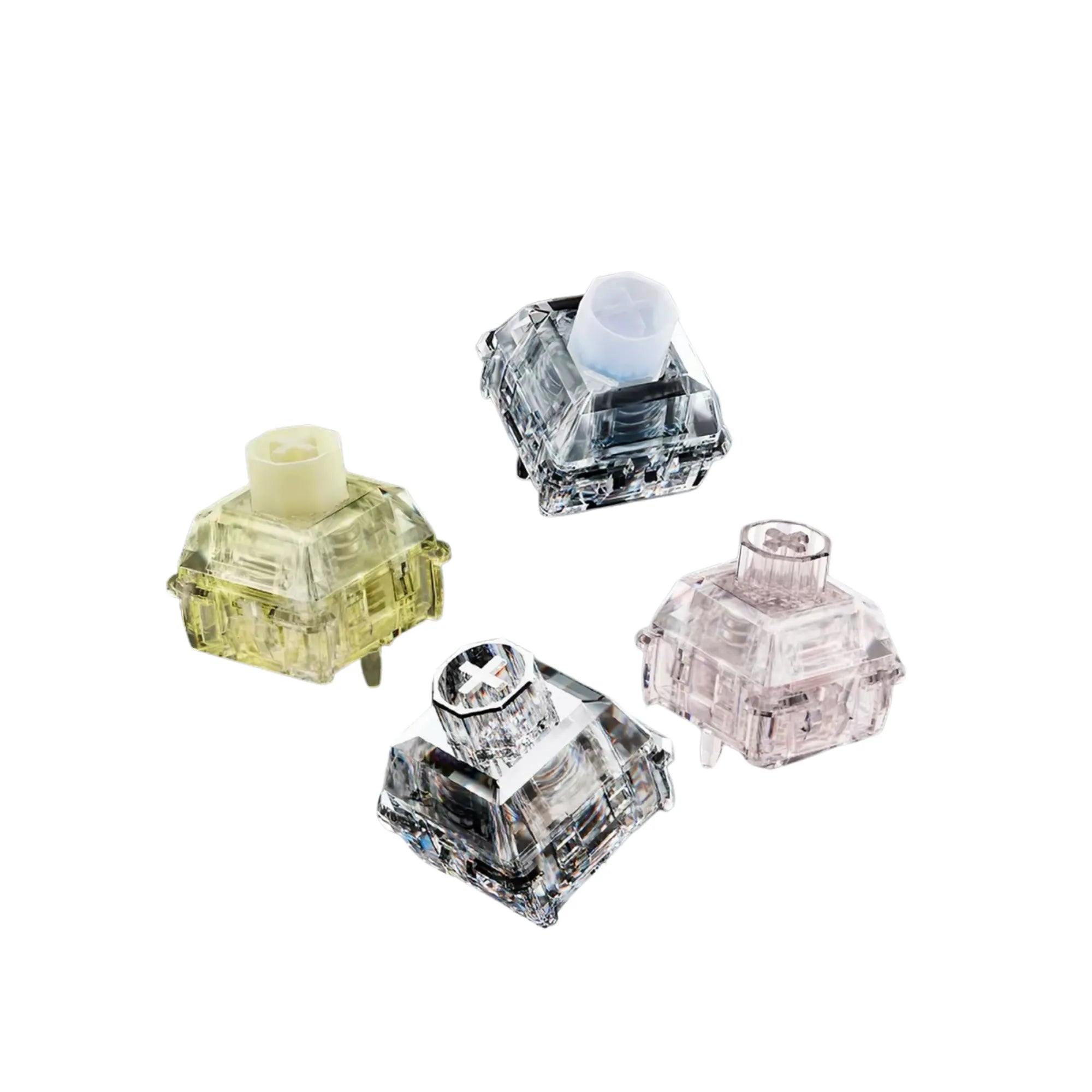

Four Variants. One Diamond Core.
The WS Flux Diamond HE Switch is available in four variants: Ocean Heart, Cullinan, Tears of the Sun and Star Kiss. Every variant shares the same Hall Effect structure, force curve and travel — the housing, stem and light-guide materials are what change, and that is what shifts the sound.
Ocean Heart
Thocky
Upper HousingLight Blue Transparent PC
StemLight Blue POM
Light GuideMatte Transparent PC
Lower HousingLight Blue Transparent PC
Cullinan
Deep Clacky
Upper HousingFull Transparent PC
StemTransparent PA12
Light GuideTransparent PC
Lower HousingFull Transparent PC

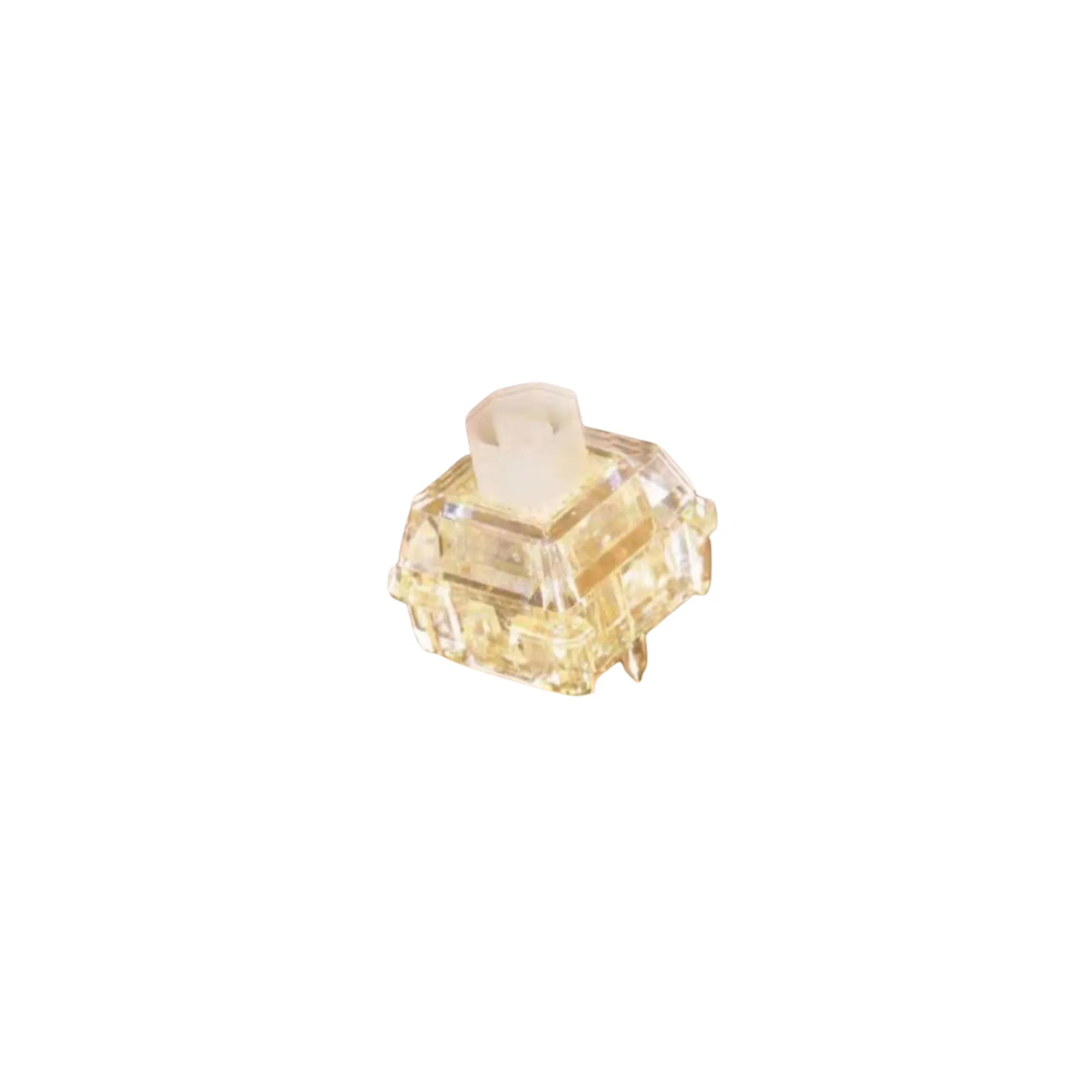

Tears of the Sun
Thocky
Upper HousingLight Yellow Transparent PC
StemSemi-Transparent Yellow POM
Light GuideFull Transparent PC
Lower HousingLight Yellow Transparent PC

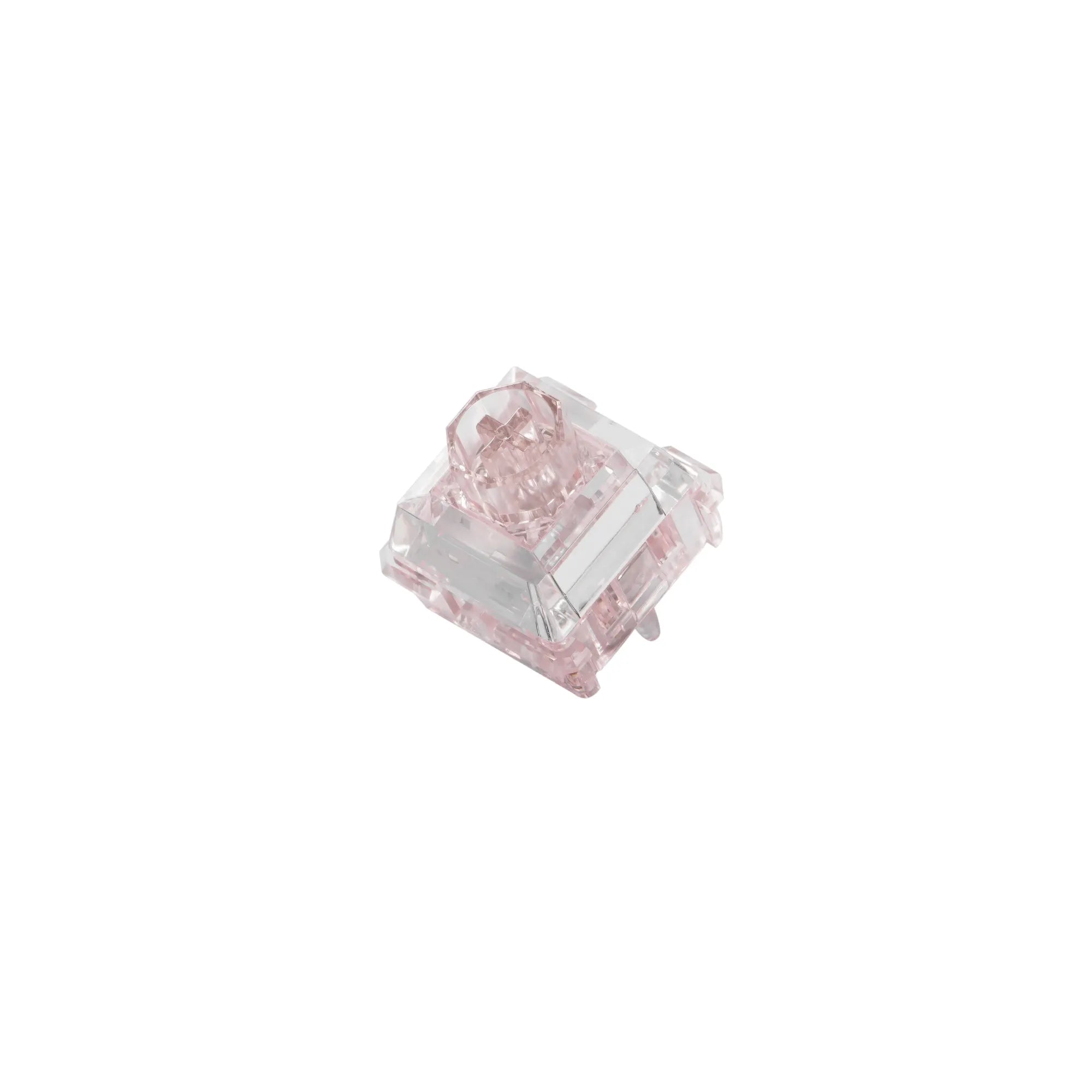

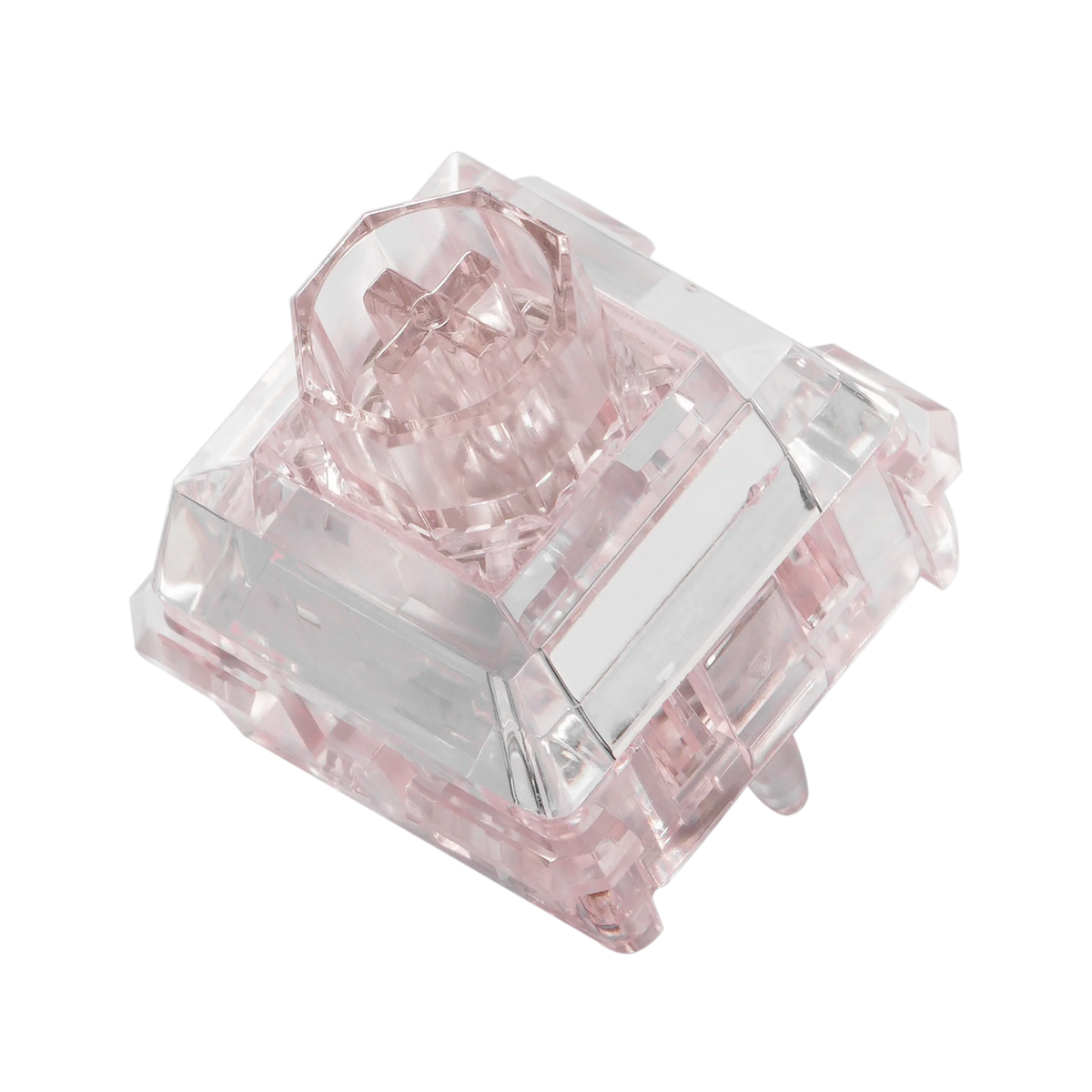

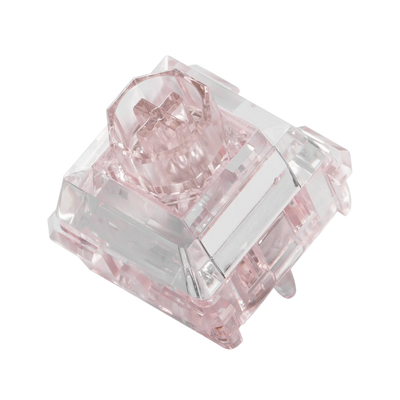

Star Kiss
Deep Clacky
Upper HousingLight Pink Transparent PC
StemTransparent PA12
Light GuideTransparent PC
Lower HousingLight Pink Transparent PC

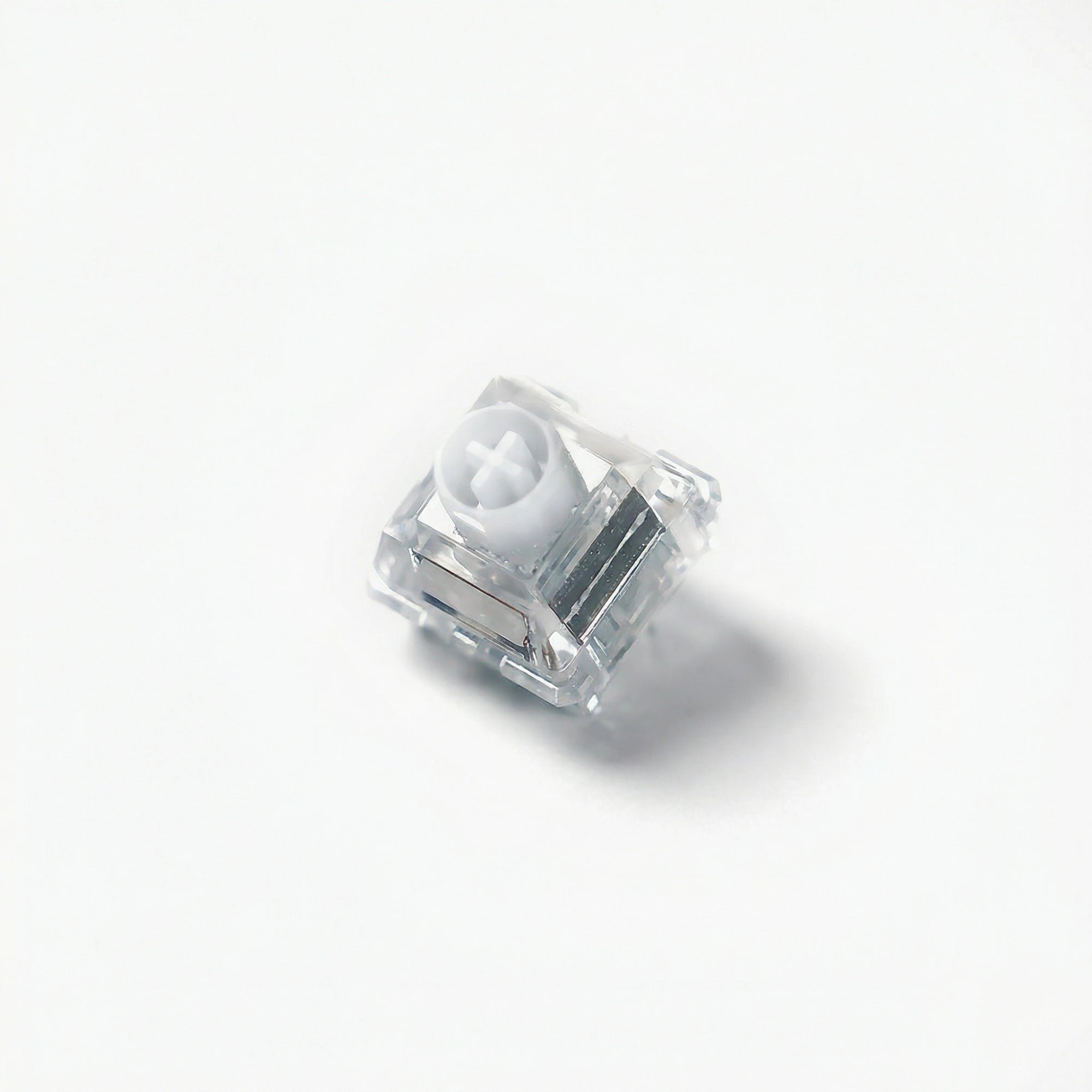

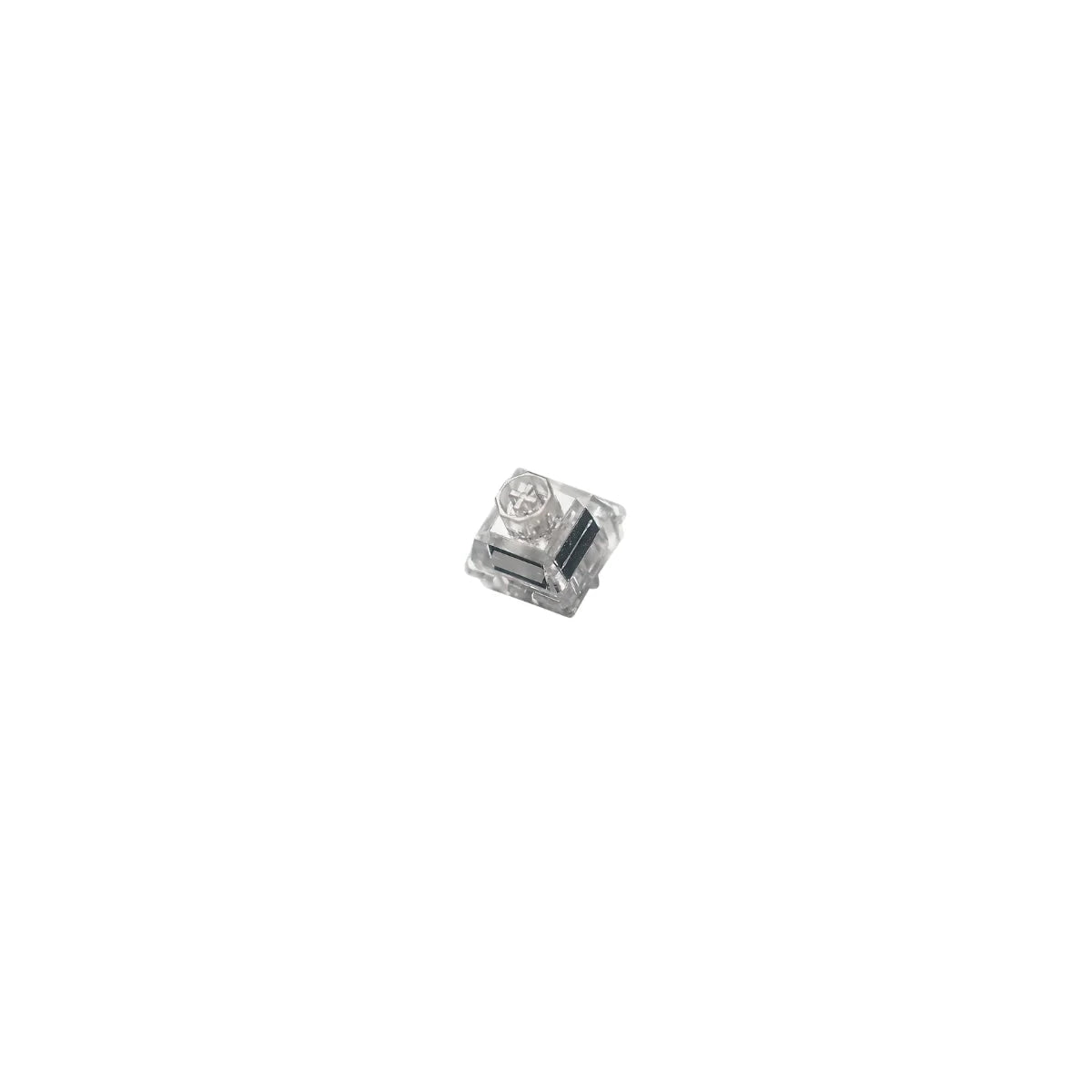

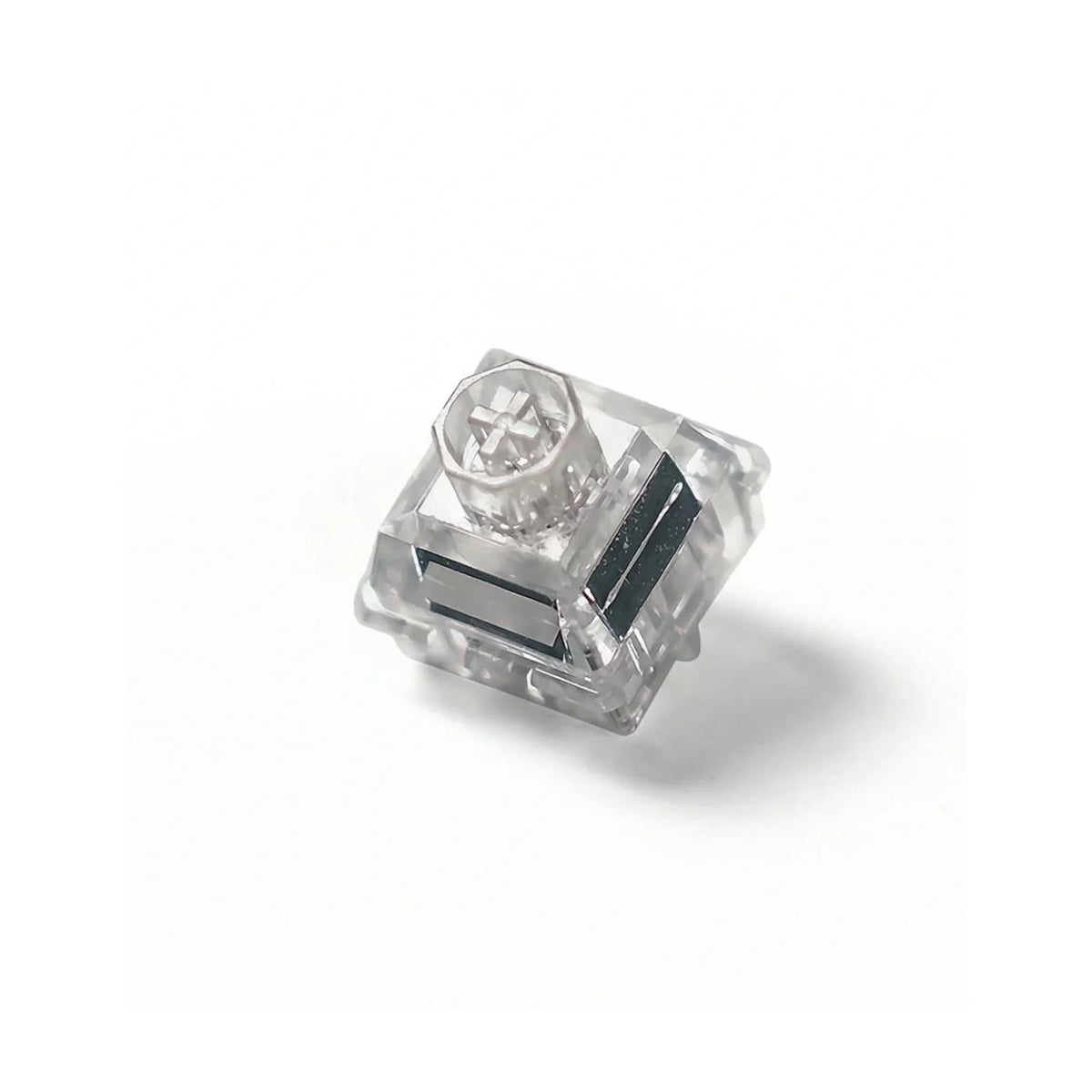

Cullinan
Fully Transparent, Deep Clacky
Cullinan runs a full transparent PC upper and lower housing with a transparent PA12 stem and a transparent PC light guide. The all-clear stack gives the cleanest RGB transmission in the series and a deep clacky bottom-out.
SoundDeep Clacky
StemTransparent PA12
Light GuideTransparent PC
RGB TransmissionHighest in series
Ocean Heart
Light Blue POM, Thocky
Ocean Heart pairs light blue transparent PC housings with a light blue POM stem and a matte transparent PC light guide. POM plus the diffused guide softens the top-end and lands a thocky profile with a milkier RGB glow.
SoundThocky
StemLight Blue POM
Light GuideMatte Transparent PC
RGBDiffused / softened
Shared Hall Effect Structure
All four variants use the same Diamond-series internals: a 3.6 mm central large magnet, a 6.65 mm × 23 mm spring, and factory-lubed linear travel calibrated for Hall Effect PCBs. Swapping colourways changes the sound, never the feel.
Spring Diameter6.65 mm
Spring Length23 mm
Magnet3.6 mm central large magnet
Initial Force35 ± 5 gf
Bottom-out Force45 ± 7 gf
Total Travel3.50 ± 0.10 mm
TypeLinear
LubricationFactory Lubed
Lifespan100 million cycles
Specification Overview
Variant Comparison
Feature
Ocean Heart
Cullinan
Tears of the Sun
Star Kiss
Sound
Thocky
Deep Clacky
Thocky
Deep Clacky
Upper Housing
Light Blue Transparent PC
Full Transparent PC
Light Yellow Transparent PC
Light Pink Transparent PC
Stem
Light Blue POM
Transparent PA12
Semi-Transparent Yellow POM
Transparent PA12
Light Guide
Matte Transparent PC
Transparent PC
Full Transparent PC
Transparent PC
Lower Housing
Light Blue Transparent PC
Full Transparent PC
Light Yellow Transparent PC
Light Pink Transparent PC
Magnetic Flux Output
Flux is calibrated for both common Hall Effect PCB thicknesses — identical across all four variants.
PCB 1.2 mm
130 ± 15 GSInitial
750 ± 70 GSBottom-out
PCB 1.6 mm
115 ± 15 GSInitial
635 ± 50 GSBottom-out
Which Magnetic Switch Should You Choose?
Ocean Heart
Light blue, thocky, with a matte light guide that diffuses RGB into a softer glow.
Cullinan
Fully clear, deep clacky, and the sharpest RGB transmission of the four.
Tears of the Sun
Light yellow with a semi-transparent POM stem — thocky, warm-toned under white lighting.
Star Kiss
Light pink with a PA12 stem — deep clacky, same acoustics as Cullinan in a pastel shell.
Installation & Compatibility
Compatibility: works with most magnetic keyboards and Hall Effect keyboards that accept standard magnetic switches.
Hot-swap Hall Effect PCBs only. A magnetic switch has no metal pins — it seats via the center magnet, so no soldering is required. Do not install these in a standard mechanical PCB.
Frequently Asked Questions
What's the difference between the four variants?
All four share the same Hall Effect core, force curve, travel and flux. Ocean Heart (light blue PC, light blue POM stem, matte light guide) and Tears of the Sun (light yellow PC, semi-transparent yellow POM stem) are tuned thocky. Cullinan (full transparent PC, PA12 stem) and Star Kiss (light pink PC, PA12 stem) are tuned deep clacky. The stem material is the main acoustic difference — POM reads thocky, PA12 reads clacky.
Which variant has the best RGB?
Cullinan, with a full transparent PC housing, transparent PA12 stem and transparent PC light guide. Tears of the Sun also uses a full transparent light guide. Ocean Heart uses a matte transparent light guide, which diffuses the light for a softer, milkier glow instead.
Do the four variants feel different to type on?
No. Initial force (35 ± 5 gf), bottom-out force (45 ± 7 gf), total travel (3.50 ± 0.10 mm), spring (6.65 mm × 23 mm) and the 3.6 mm central magnet are identical across all four. Only the sound and the look change.
Are these compatible with my Hall Effect keyboard?
Compatible with most magnetic keyboards that support standard magnetic switches. Install on a hot-swap Hall Effect PCB only.
Do I need to solder these switches?
No. A magnetic switch has no metal pins — it seats via the center magnet into a hot-swap Hall Effect PCB. No soldering required.
Are these linear or tactile?
All four are factory-lubed linear switches, 35 ± 5 gf initial force and 45 ± 7 gf bottom-out force.
Why are two magnetic flux values listed?
Hall Effect PCBs are commonly 1.2 mm or 1.6 mm thick, which changes the sensor-to-magnet distance. Flux is calibrated for both: 130 ± 15 GS initial / 750 ± 70 GS bottom-out on 1.2 mm, and 115 ± 15 GS initial / 635 ± 50 GS bottom-out on 1.6 mm.
Technical Specifications
Switch Type
Hall Effect Switch (Magnetic Switch), Linear
Series
WS Flux Diamond Series
Variants
Ocean Heart · Cullinan · Tears of the Sun · Star Kiss
