WS Flux HE Switch — Redefining Stability with Precision Structure
Hall Effect magnetic linear switch built around an octagonal stabilizing stem, dual T-slide rails, golden four-point rebound and an oversized 3.6 × 3.6 mm magnet. Three sound profiles to match your build.
Flux A · ClackyFlux B · Deep ClackyFlux C · Pink-Lotus Thocky
Hall Effect Magnetic Switch with Precision Engineered Stability
The WS Flux HE Switch is a factory-lubricated Hall Effect magnetic linear switch rebuilt from the inside out for stability and precision. Octagonal Stabilizing Stem, Precision Dual T-Slide Rail Structure, Golden Four-Point Rebound Limiting, and a Powerful Magnetic Flux Design — every internal element is tuned for a wobble-free, esports-grade keystroke. Available in three sound profiles: Flux A Clacky, Flux B Deep Clacky, and Flux C Pink-Lotus Thocky.
Choose Your Sound Profile
Three Flux variants share the same internal structure and Hall Effect specs — pick the housing colorway and acoustic character you want.

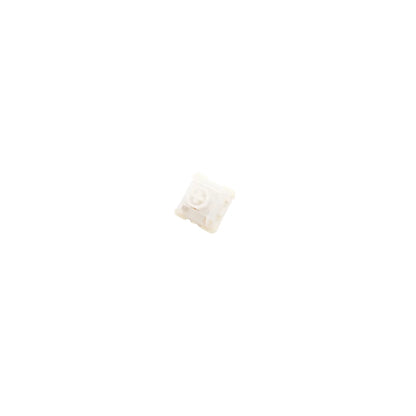

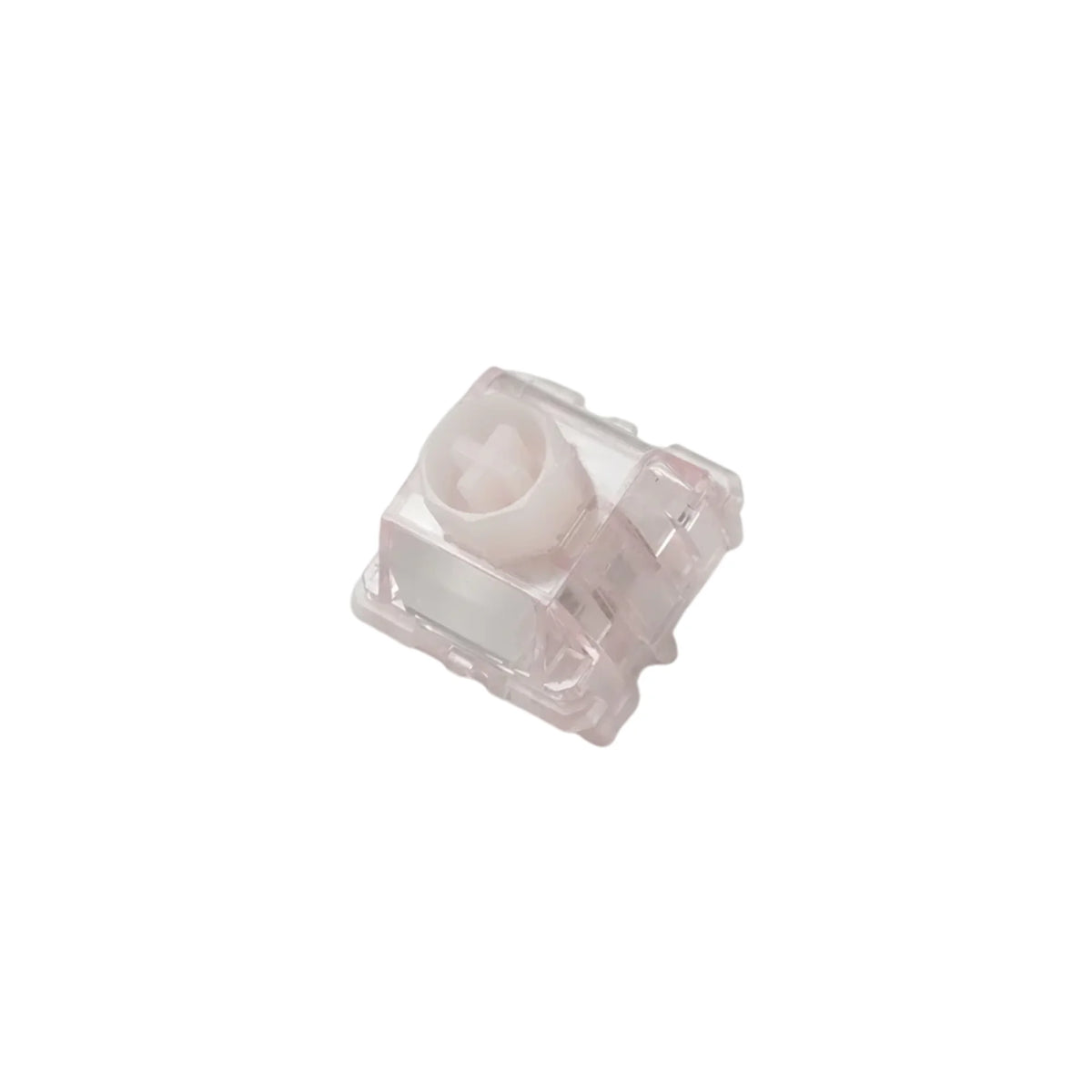

Flux A
Clacky
Crisp, bright clack with a clean, snappy character. The reference Flux profile.

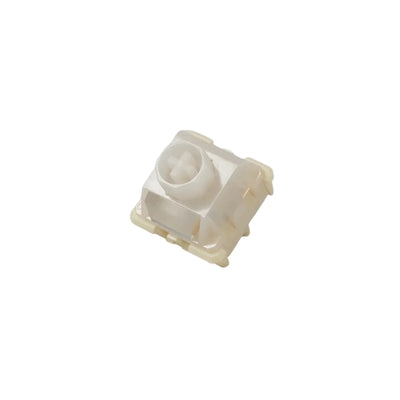

Flux B
Deep Clacky
Lower-pitched clack with extra body — keeps the snap, drops the brightness for a fuller tone.

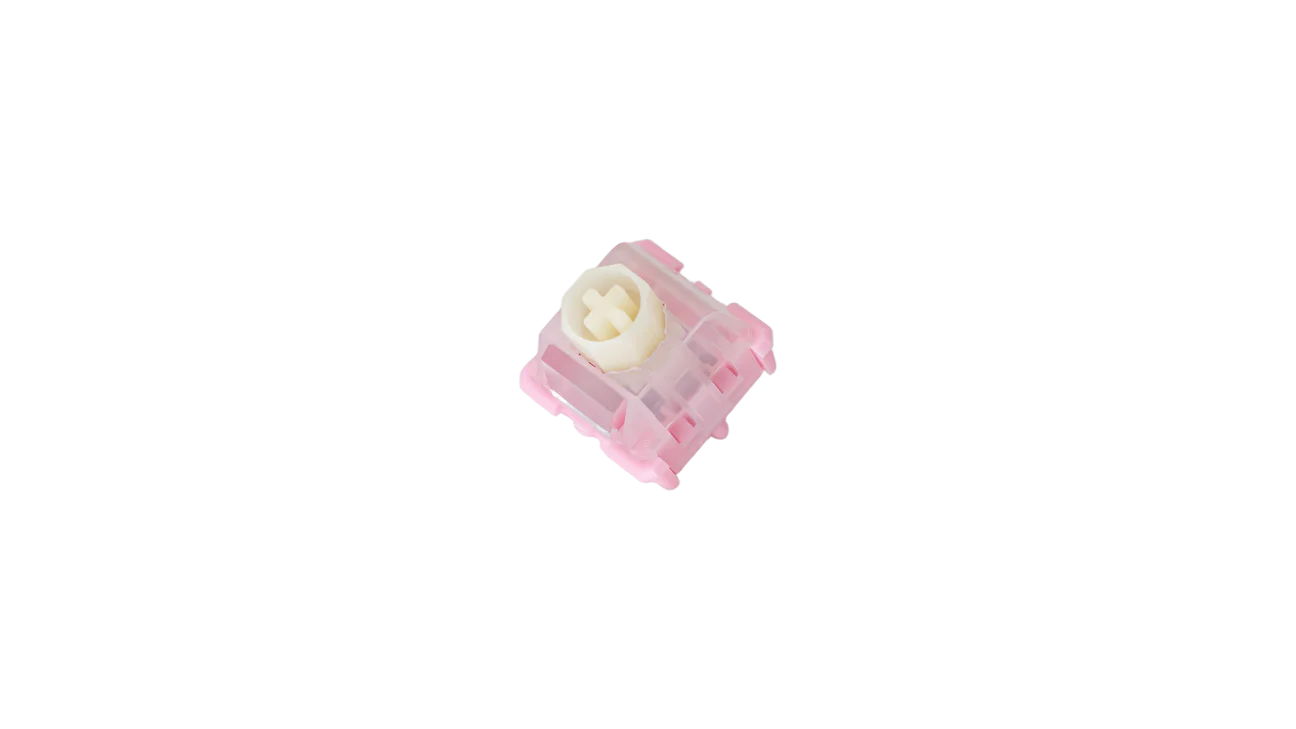

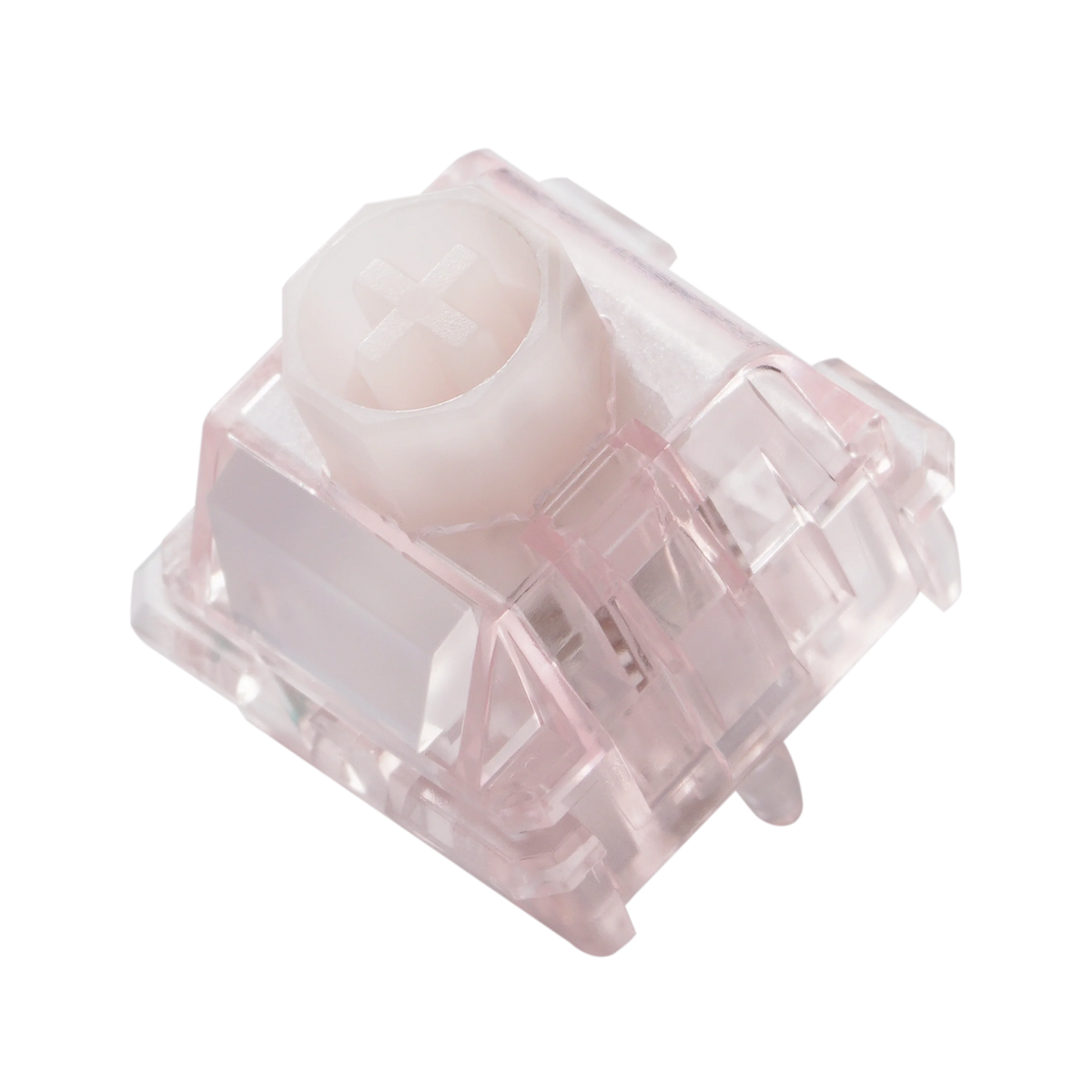

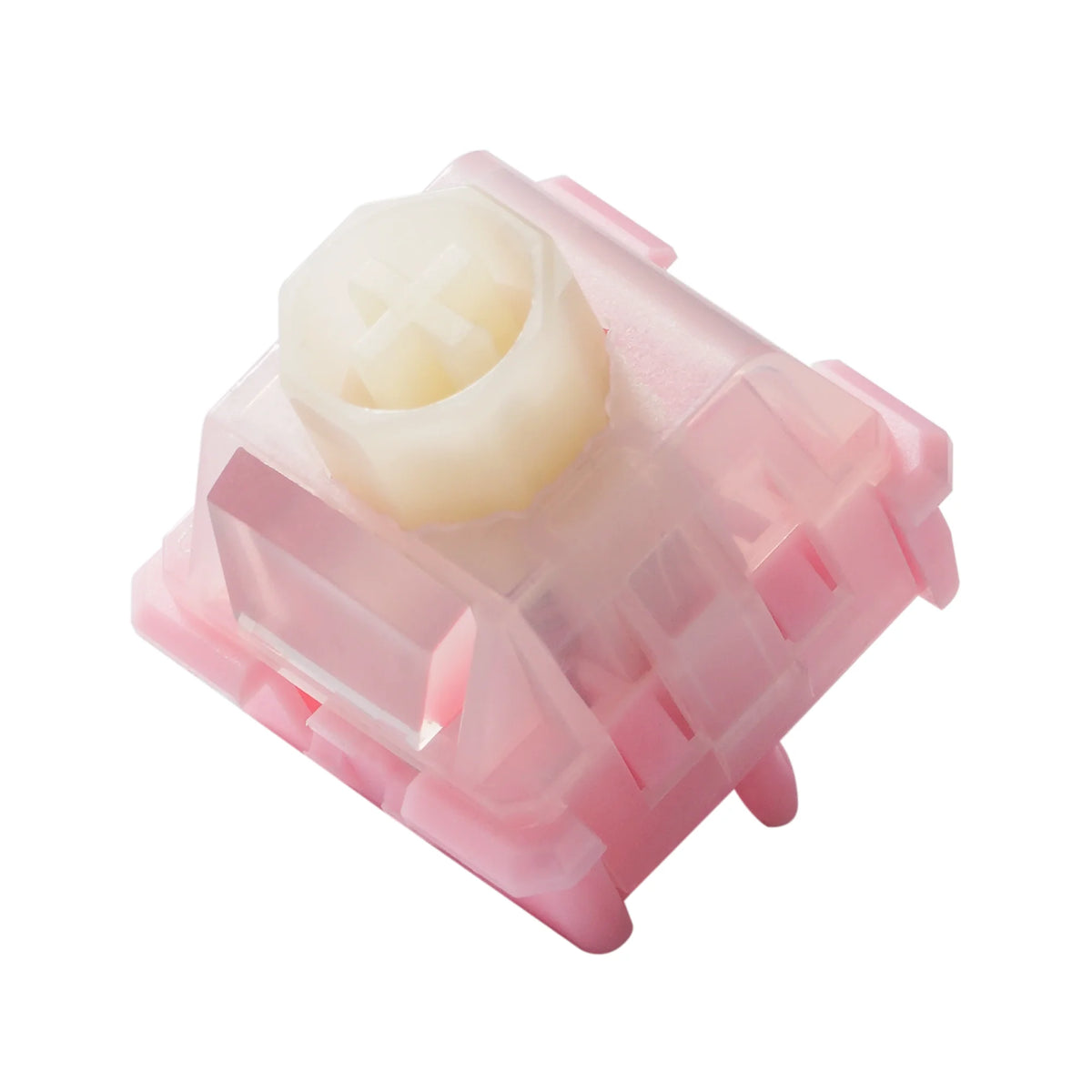

Flux C
Pink-Lotus Thocky
Soft, full thock in a translucent pink-lotus housing — a quieter, rounder sound profile for typing-first builds.
WS Flux HE Switch Internal Structure
01 · Top Housing
Holds the rail geometry that guides the stem.
02 · Light Guide Diffuser
Channels RGB light from the PCB up through the cap.
03 · Octagonal Stem
Eight-sided stabilizing geometry for wobble-free travel.
04 · 3.6 × 3.6 mm Magnet
Oversized center magnet for a strong, gradient flux profile.
05 · Customized Spring
Linear-tuned spring for consistent return and keystroke feel.
06 · Bottom Housing
Anchors the magnet and stabilizes the assembly on the PCB.
Four Engineering Pillars Behind the Flux
The WS Flux's wobble-free feel comes from four cooperating structural elements — each redesigned to remove a specific failure mode found in earlier Hall Effect switches.
01
Octagonal Stabilizing Stem
Innovative octagonal stem design overcomes the 45° diagonal press deviation of traditional square switches, ensuring equal trigger distance for both vertical and diagonal presses. Ultra-precision machining achieves 0.05 mm uniform wobble clearance — esports-grade accuracy for MOBA combos and rapid typing.
02
Precision Dual T-Slide Rail Structure
Simulating the dual T-slide rail structure of precision machinery, this design ensures ultra-smooth and stable keystrokes — minimizing noise and enhancing tactile consistency from the first press to the millionth.
03
Golden Four-Point Rebound Limiting
Four-point rebound geometry caps the upward stem return at the precise reset position — clean, predictable rebound with no over-travel, every keypress.
04
Powerful Magnetic Flux Design
Equipped with an oversized 3.6 mm × 3.6 mm magnet and a gradient magnetic flux of 120 – 640 Gs. Paired with Hall sensor calibration, triggering accuracy reaches 0.01 mm — effectively reducing unintended presses and accidental activations.
WS Flux Magnetic Flux Output (1.6 mm PCB)
Calibrated for 1.6 mm Hall Effect PCBs — your magnetic keyboard reads a wide, well-defined sensor range with 0.01 mm trigger accuracy.
Initial Magnetic Flux
115 ± 15 Gs at rest
Bottom-out Flux
635 ± 50 Gs fully pressed
Installation & Compatibility
Compatible with most Hall Effect keyboards that support standard magnetic switches. Install on a hot-swap Hall Effect PCB only — magnetic switches do not use metal pins and seat via the center magnet, no soldering required.
WS Flux HE Switch Technical Specifications
Switch Type
Hall Effect Magnetic, Linear
Series
WS Flux
Variants
Flux A Clacky · Flux B Deep Clacky · Flux C Pink-Lotus Thocky
Stem Geometry
Octagonal Stabilizing Stem (0.05 mm uniform wobble clearance)
Rail Structure
Precision Dual T-Slide
Rebound Limiting
Golden Four-Point
Magnet
3.6 × 3.6 mm oversized center magnet
Magnetic Flux Range
120 – 640 Gs gradient
Initial Magnetic Flux
115 ± 15 Gs (1.6 mm PCB)
Bottom-out Magnetic Flux
635 ± 50 Gs (1.6 mm PCB)
Trigger Accuracy
0.01 mm
Spring
Customized linear spring
Lubrication
Factory Lubed
Compatibility
Hot-swap Hall Effect PCBs supporting standard magnetic switches
WS Flux HE Switch FAQ
What's the difference between Flux A, B, and C?
All three variants share the same WS Flux internal structure, octagonal stem, dual T-slide rail, and 3.6 × 3.6 mm magnet. The difference is the housing material and resulting sound profile: Flux A is the reference clacky tone; Flux B is a deeper clacky with more body; Flux C Pink-Lotus is a softer, rounder thock in a translucent pink-lotus housing.
What makes the WS Flux more stable than other magnetic switches?
Four engineering choices: an octagonal stabilizing stem with 0.05 mm uniform wobble clearance (vs. four-sided stems that wobble), a precision dual T-slide rail structure (lateral stability with smooth vertical glide), golden four-point rebound limiting (consistent reset position), and a calibrated 3.6 × 3.6 mm magnet with 120 – 640 Gs gradient flux. Together they remove most of the wobble and inconsistency found in earlier-generation Hall Effect switches.
What does "0.01 mm trigger accuracy" mean?
The combination of the oversized magnet and Hall sensor calibration lets your PCB resolve actuation point changes down to 0.01 mm — useful for rapid trigger setups, MOBA combos, and reducing unintended presses or accidental activations.
Are these compatible with my Hall Effect keyboard?
Compatible with most Hall Effect keyboards that support standard magnetic switches. Install on a hot-swap Hall Effect PCB only.
Do I need to solder these switches?
No. Magnetic switches do not use metal pins — they seat via the center magnet into a hot-swap Hall Effect PCB. No soldering required.
Are these linear or tactile?
All three Flux variants are factory-lubed linear switches.
Specifications
Type
Hall Effect Linear
Actuation Force
35gf
Bottom-out Force
50gf
Total Travel
3.5mm
Housing
Polycarbonate
Factory Lubed
Yes
Brand
Wuque Studio
